Standard Procedure - Checking Battery Electrolyte Level

WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery cell caps. See Fig 1.

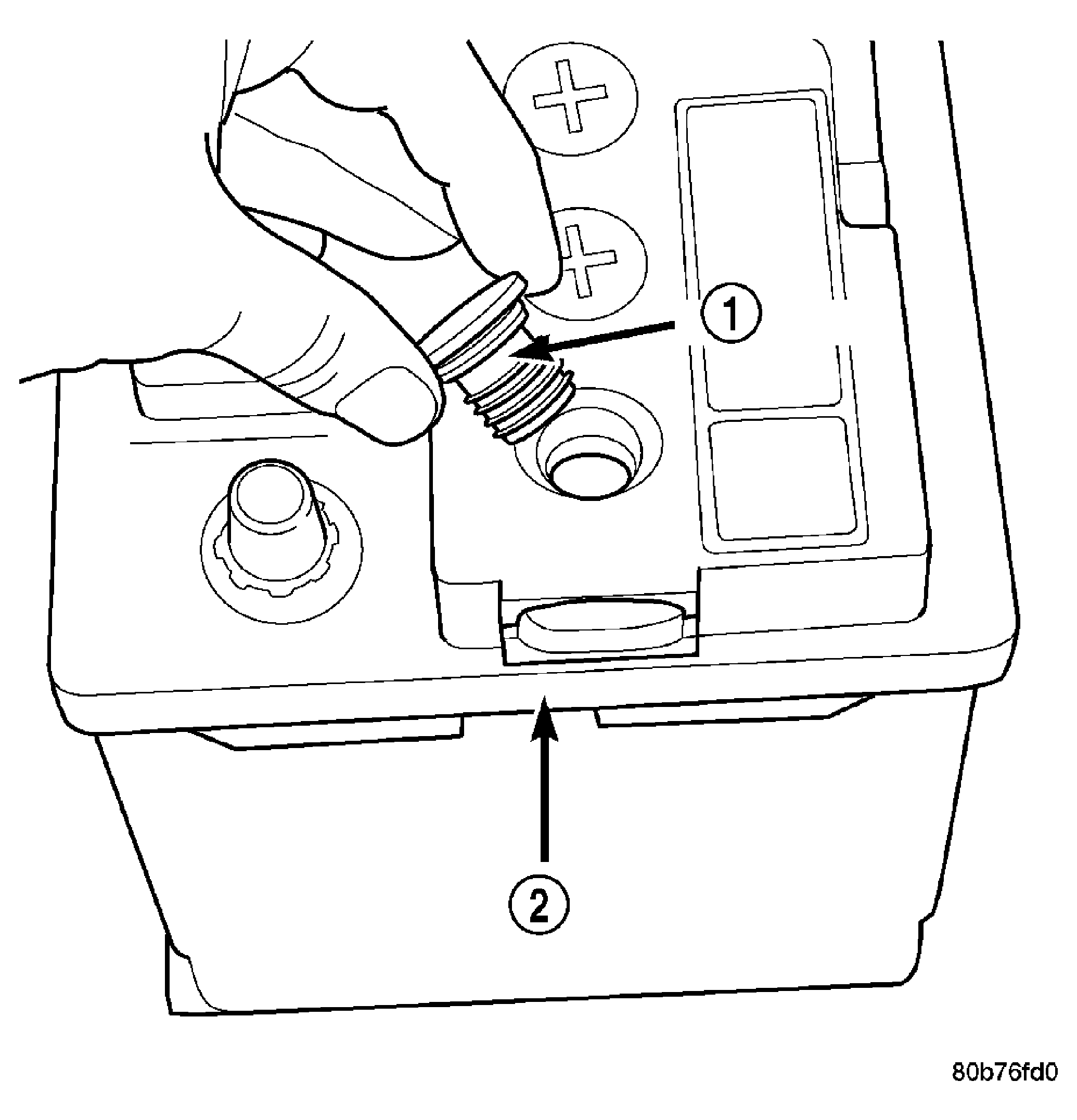

Fig 1: Battery Caps
Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY CELL CAP

2 - BATTERY
Look through the battery cap holes to determine the level of the electrolyte in the battery. See Fig 2. The electrolyte should be approximately 1 centimeter above the battery plates or until the hook inside the battery cap holes is covered.

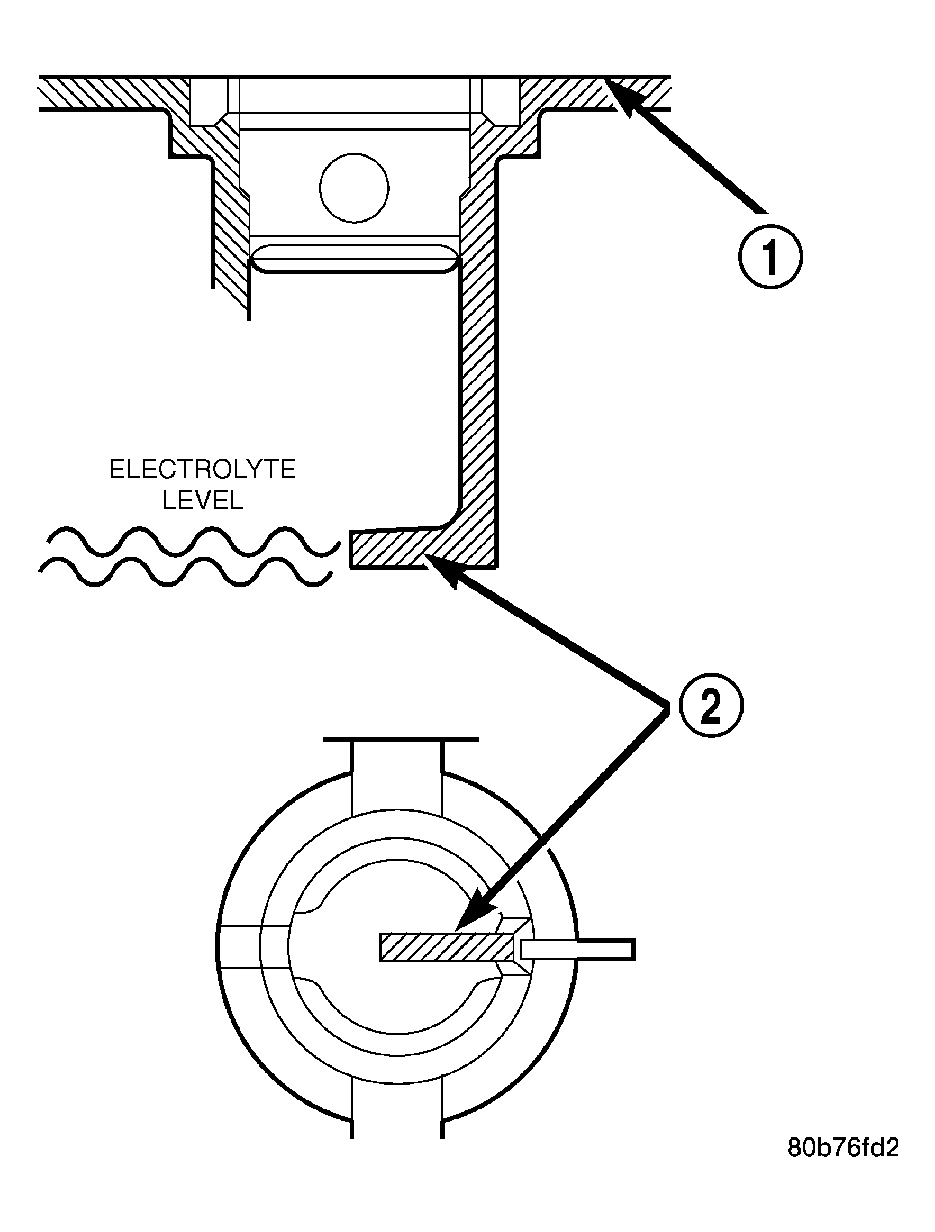

Fig 2: Hook Inside Battery Cap Holes
Courtesy of DAIMLERCHRYSLER CORP.

1 - BATTERY SURFACE COVER

2 - HOOK
Add only distilled water until the electrolyte level is approx. one centimeter above the plates.
