Starter Motor Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

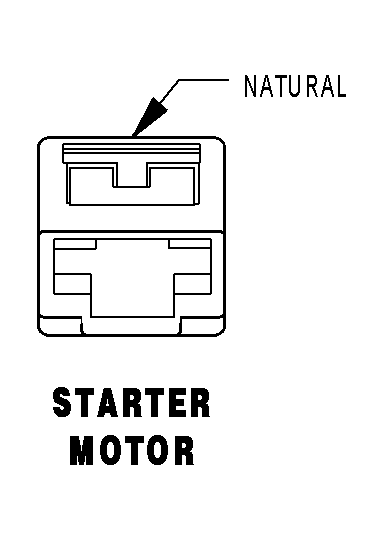

STARTER MOTOR - NATURAL 1 WAY

GCZB680204Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 T40 12YL/TN STARTER MOTOR RELAY OUTPUT
