Idle Air Control Motor Connector End View
WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

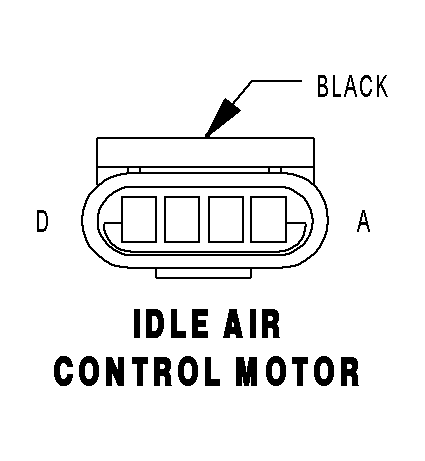

IDLE AIR CONTROL MOTOR - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
K40 18BR/LG |
IDLE AIR CONTROL NO. 1 DRIVER |
| B |
K60 18VT/DG |
IDLE AIR CONTROL NO. 2 DRIVER |
| C |
K39 18VT/LG |
IDLE AIR CONTROL NO. 3 DRIVER |
| D |
K59 18BR/DG |
IDLE AIR CONTROL NO. 4 DRIVER |
