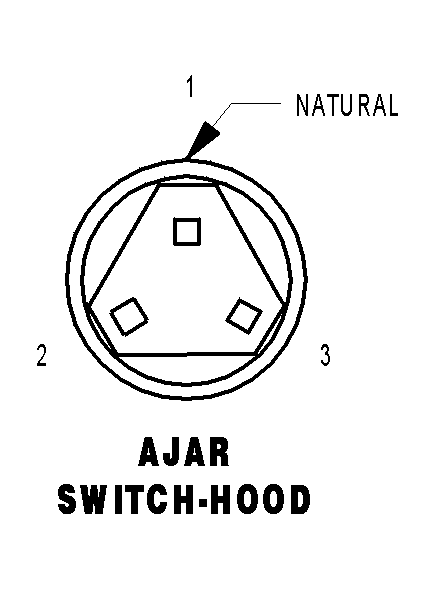

Hood Ajar Switch Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

AJAR SWITCH-HOOD - NATURAL 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G70 20VT/LB	HOOD AJAR SWITCH SENSE
2	Z1 20BK	GROUND
3	-	-
