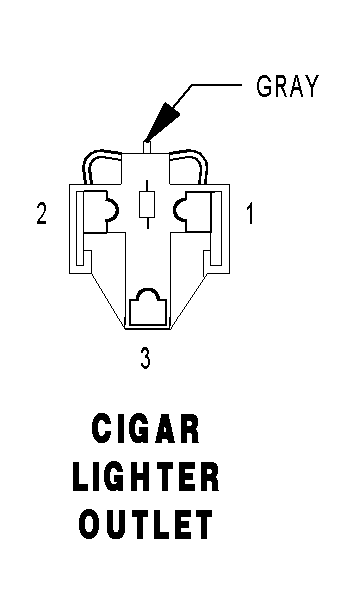

Cigar Lighter Outlet Connector End View

WARNING: This page is about a different car, the 2009 Dodge Viper, 2008 Dodge Viper, and 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

CIGAR LIGHTER OUTLET - GRAY 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A105 16DB/RD	FUSED B(+)
2	-	-
3	Z1 16BK	GROUND
