A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the power distribution center (PDC) located in the engine compartment. See Fig 1.
    NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.
  3. Remove the A/C clutch relay from the PDC.

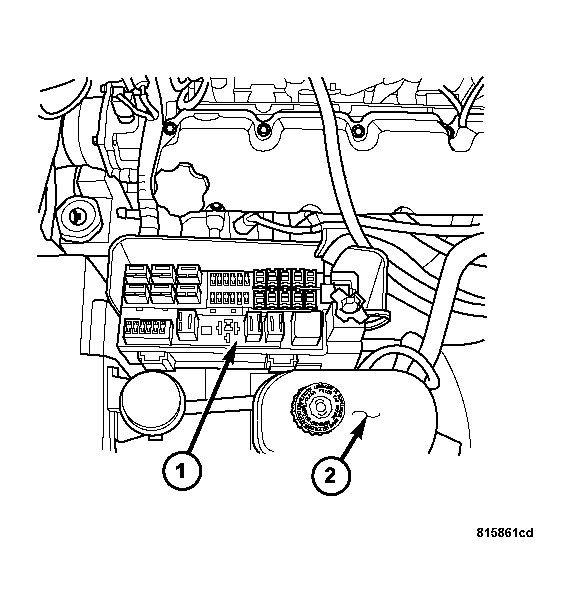

Fig 1: A/C Compressor Clutch Relay
GC0048441Courtesy of DAIMLERCHRYSLER CORP.
1 - POWER DISTRIBUTION CENTER (PDC)
2 - BRAKE MASTER CYLINDER RESERVOIR
