Audio System: Notes

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

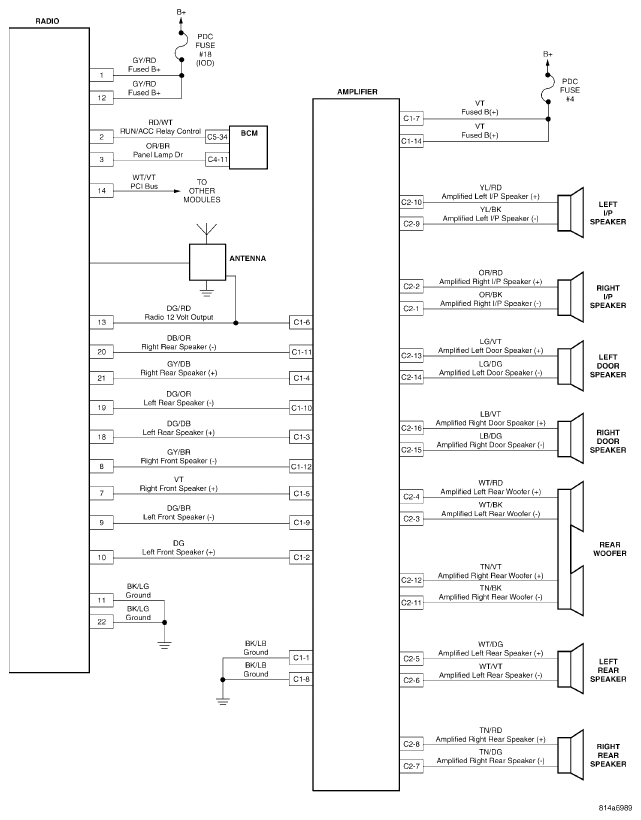

Fig 1: Audio System - Schematic Diagrams
G04763904Courtesy of CHRYSLER
