EVAP/Purge Solenoid - 2 Way

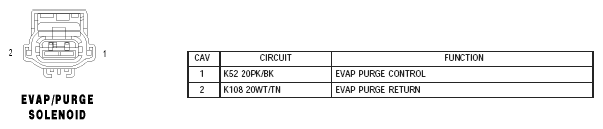

Fig 1: Identifying Connector Pinouts - EVAP/Purge Solenoid - 2 Way

G04762564
