Powertrain Control Module C4 - Black/Green 38 Way

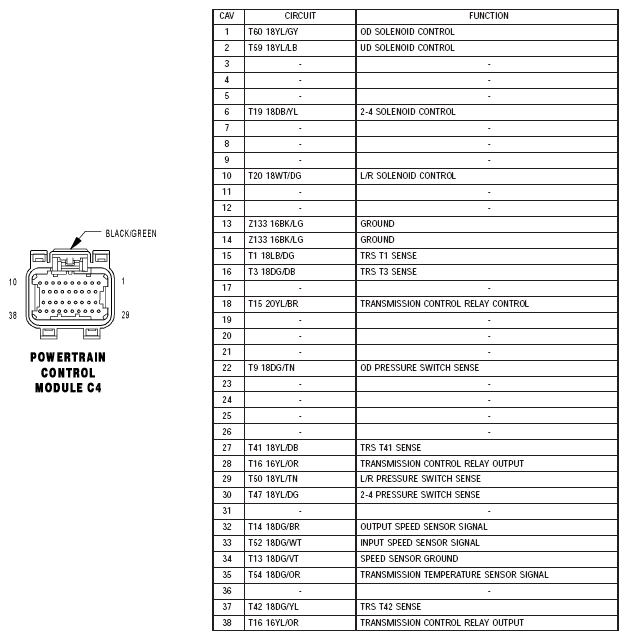

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C4

G04762508

Courtesy of DAIMLERCHRYSLER CORPORATION
