Transmission Input Speed Sensor And Output Speed Sensor Locations

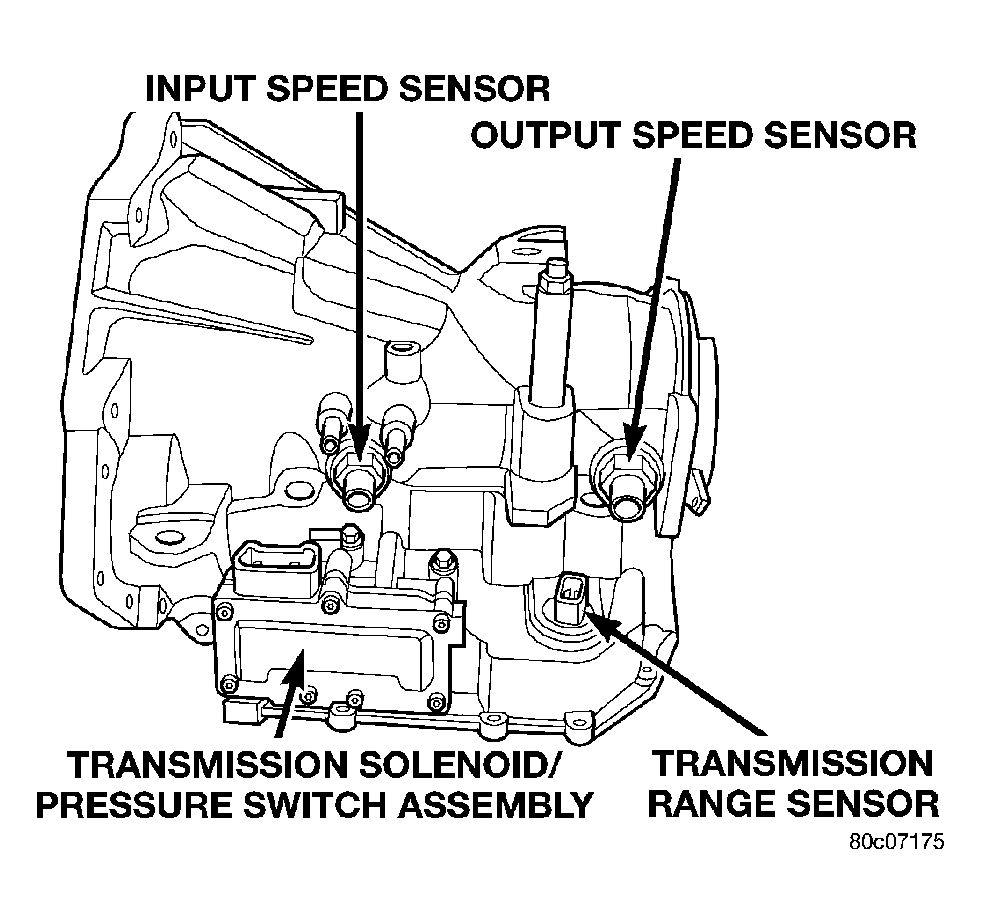

Fig 1: Identifying Input Speed Sensor And Output Speed Sensor

G04528412

Courtesy of DAIMLERCHRYSLER CORPORATION
