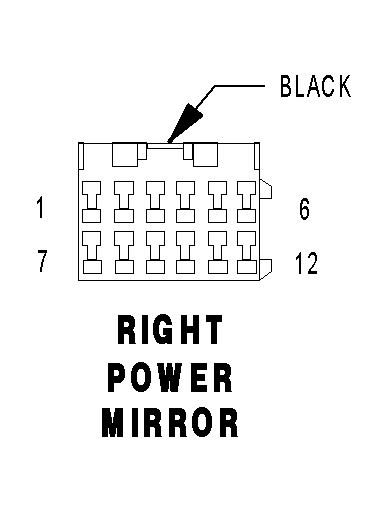

Right Power Mirror Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
RIGHT POWER MIRROR - BLACK 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P174 20TN/LB (EXPORT) | RIGHT FOLDING MIRROR UNFOLD DRIVER |
| 2 | - | - |
| 3 | - | - |
| 4 | P68 20TN/YL (RHD MEMORY) | RIGHT MIRROR HORIZONTAL POSITION SIGNAL |
| 5 | P66 20TN/LG (RHD MEMORY) | RIGHT MIRROR SENSOR GROUND |
| 6 | P67 20TN/OR (RHD MEMORY) | RIGHT MIRROR VERTICAL POSITION SIGNAL |
| 7 | P160 20TN/LG (LHD EXPORT) | PASSENGER FOLDING MIRROR RELAY OUTPUT |
| 7 | P159 20TN/DG (RHD) | DRIVER FOLDING MIRROR FOLD DRIVER |
| 8 | Z216 20BK/DB | GROUND |
| 9 | C16 20DB/GY (HEATED MIRRORS) | FUSED DEFOGGER RELAY OUTPUT |
| 10 | P70 20TN/LB | RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN) |
| 11 | P72 20TN/GY | RIGHT MIRROR UP DRIVER |
| 12 | P74 20TN/DB | RIGHT MIRROR LEFT DRIVER |
