Rear Blower Motor Power Module (3 Zone Automatic Temperature Control) Connector End View (C1)

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

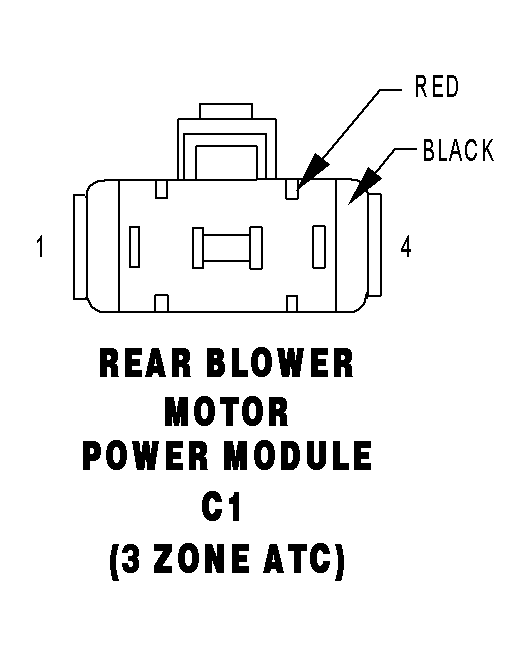

REAR BLOWER MOTOR POWER MODULE C1 (3 ZONE ATC) - RED/BLACK 4 WAY

GCRS680382Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18DB/LB REAR BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4 - -
