Mass Air Flow Sensor (Diesel) Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

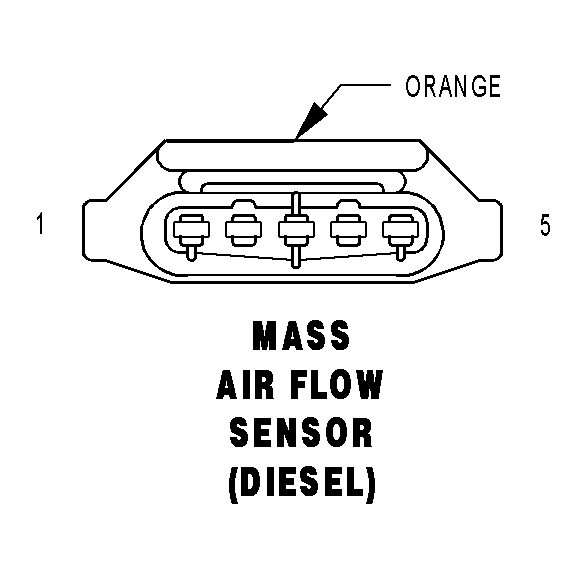

MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
K342 16BR/WT |
ECM/PCM RELAY OUTPUT |
| 3 |
K957 20BK/OR |
MASS AIR FLOW SENSOR GROUND |
| 4 |
F855 20PK/YL |
SENSOR REFERENCE VOLTAGE A |
| 5 |
K55 20DB/OR |
MASS AIR FLOW SENSOR SIGNAL |
