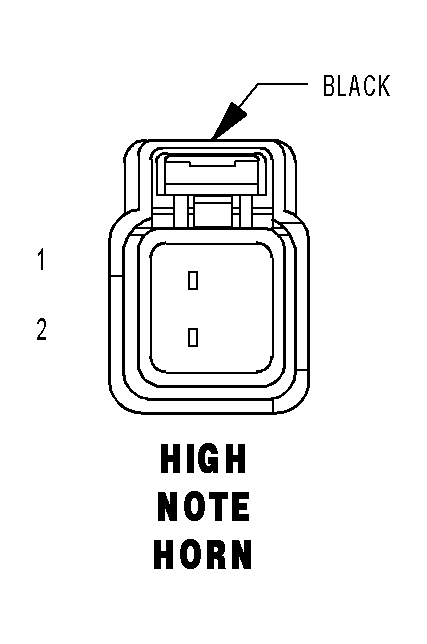

High Note Horn Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

HIGH NOTE HORN - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z299 20BK/OR	GROUND
2	X2 18DG/OR	HORN RELAY OUTPUT
