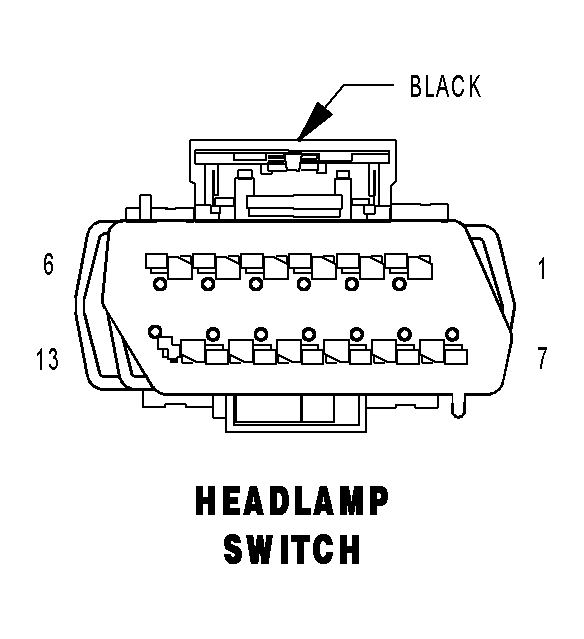

Headlamp Switch Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
HEADLAMP SWITCH - BLACK 13 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z403 20BK/YL (EXPORT) | GROUND |
| 2 | L78 20WT/OR (EXPORT) | FUSED PARK LAMP RELAY OUTPUT (RIGHT) |
| 3 | - | - |
| 4 | E19 20OR/BR (AUTO HEADLAMPS) | HEADLAMP SWITCH DIMMER SIGNAL |
| 5 | L36 20WT/DB (EXPORT) | REAR FOG LAMP INDICATOR DRIVER |
| 6 | L900 22WT/YL | HEADLAMP SWITCH MUX RETURN |
| 7 | L13 20WT/YL (EXPORT) | HEADLAMP ADJUST SIGNAL |
| 8 | Z407 22BK/OR (HIGHLINE) | GROUND |
| 9 | - | - |
| 10 | L39 22WT/OR (HIGHLINE) | FRONT FOG LAMP INDICATOR DRIVER |
| 11 | L307 20WT/BR | HEADLAMP SWITCH MUX |
| 12 | E2 22OR/BR | PANEL LAMPS DIMMER SIGNAL |
| 13 | - | - |
