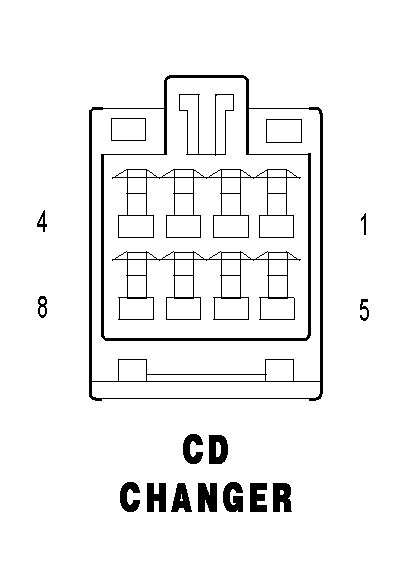

CD Changer Connector End View
WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
CD CHANGER - 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X40 22GY/WT (EXCEPT EXPORT) | AUDIO OUT RIGHT |
| 1 | X40 20GY/WT (EXPORT) | AUDIO OUT RIGHT |
| 2 | E14 22OR/TN (EXCEPT EXPORT) | PANEL LAMPS DRIVER |
| 2 | E14 18OR/TN (EXPORT) | PANEL LAMPS DRIVER |
| 3 | D25 20WT/VT (EXCEPT EXPORT) | PCI BUS |
| 3 | D25 20VT/YL (EXPORT) | PCI BUS |
| 4 | X112 20DG/GY (EXCEPT EXPORT) | IGNITION RUN/ACC SIGNAL |
| 4 | X112 20RD (EXPORT) | IGNITION RUN/ACC SIGNAL |
| 5 | X41 22DG/WT (EXCEPT EXPORT) | AUDIO OUT LEFT |
| 5 | X41 20DG/WT (EXPORT) | AUDIO OUT LEFT |
| 6 | X140 22GY/OR (EXCEPT EXPORT) | COMMON AUDIO |
| 6 | Z140 18BK/OR (EXPORT) | GROUND |
| 7 | Z141 20BK/TN (EXCEPT EXPORT) | GROUND |
| 7 | Z141 18BK/TN (EXPORT) | GROUND |
| 8 | X160 20GY/YL | FUSED B(+) |
