Speed Control Servo - Black 4 Way

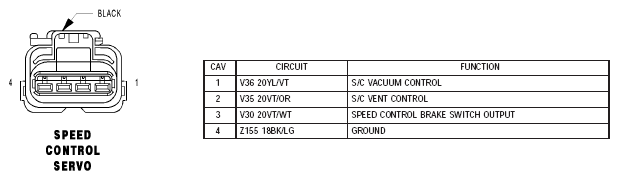

Fig 1: Identifying Connector Pinouts - Speed Control Servo

G04762189

Courtesy of DAIMLERCHRYSLER CORPORATION
