Front Seat Belt Height Adjuster: Installation

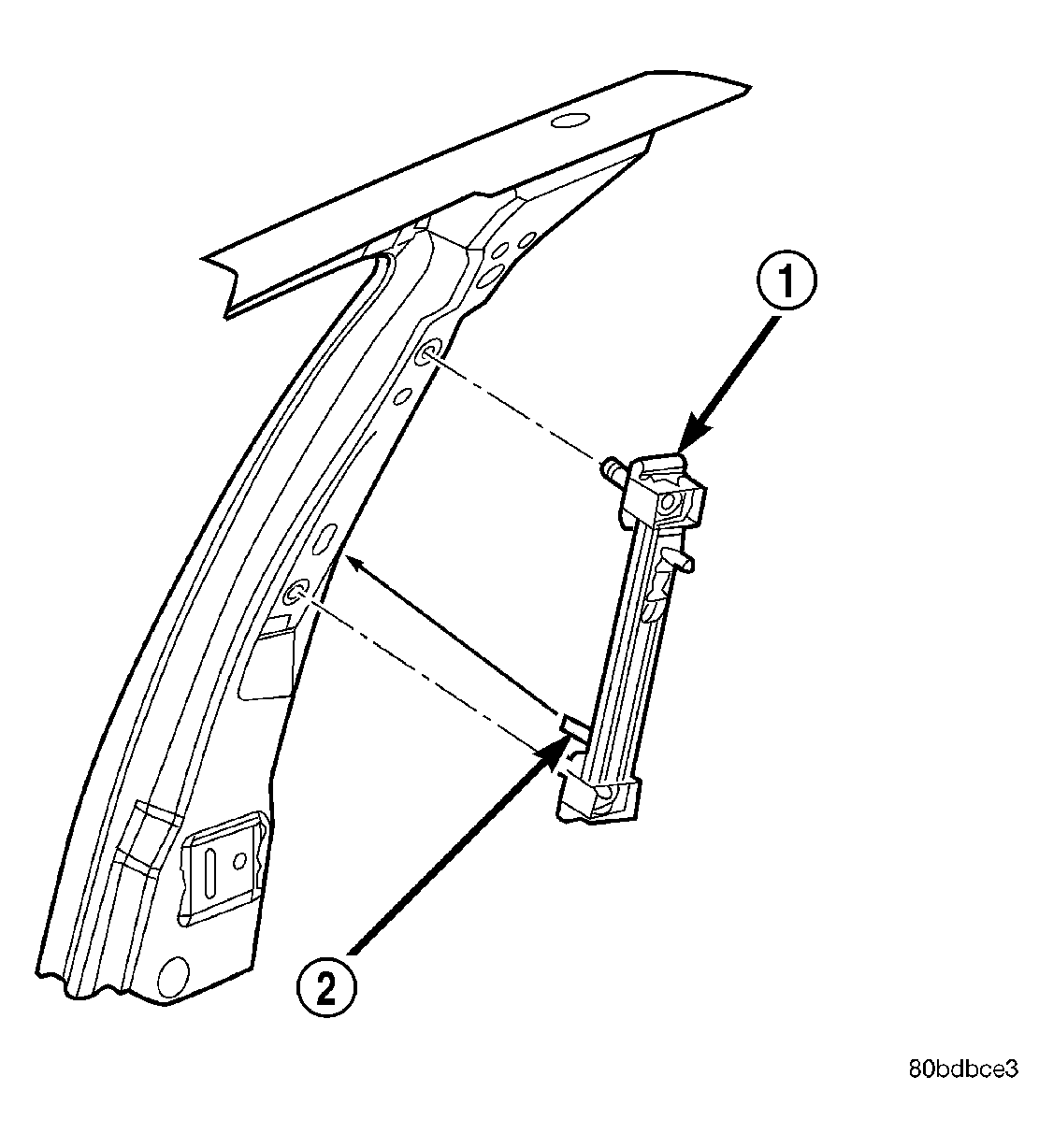

Fig 1: Removing/Installing Front Shoulder Belt Adjuster

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: Front seat belt assemblies must be replaced after a collision.

NOTE: Front seat belt height adjuster must be in the lowest position when Installing adjuster knob.

1. Place into position the front seat belt height adjuster (1).
2. Install bolts attaching the front seat belt height adjuster (1) to B-pillar. Tighten bolts to 40 N.m (30 ft. lbs.).
3. Install B-pillar trim (Refer to BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION) .
