Engine Coolant Temperature Sensor (Diesel) Connector End View

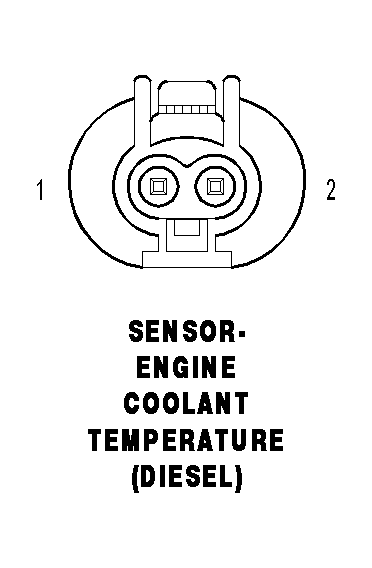

SENSOR-ENGINE COOLANT TEMPERATURE (DIESEL) - 2 WAY

GCPT680290Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K2 20LG/RD ECT SIGNAL
2 K900 20BR/RD SENSOR GROUND
