Circuit Schematic

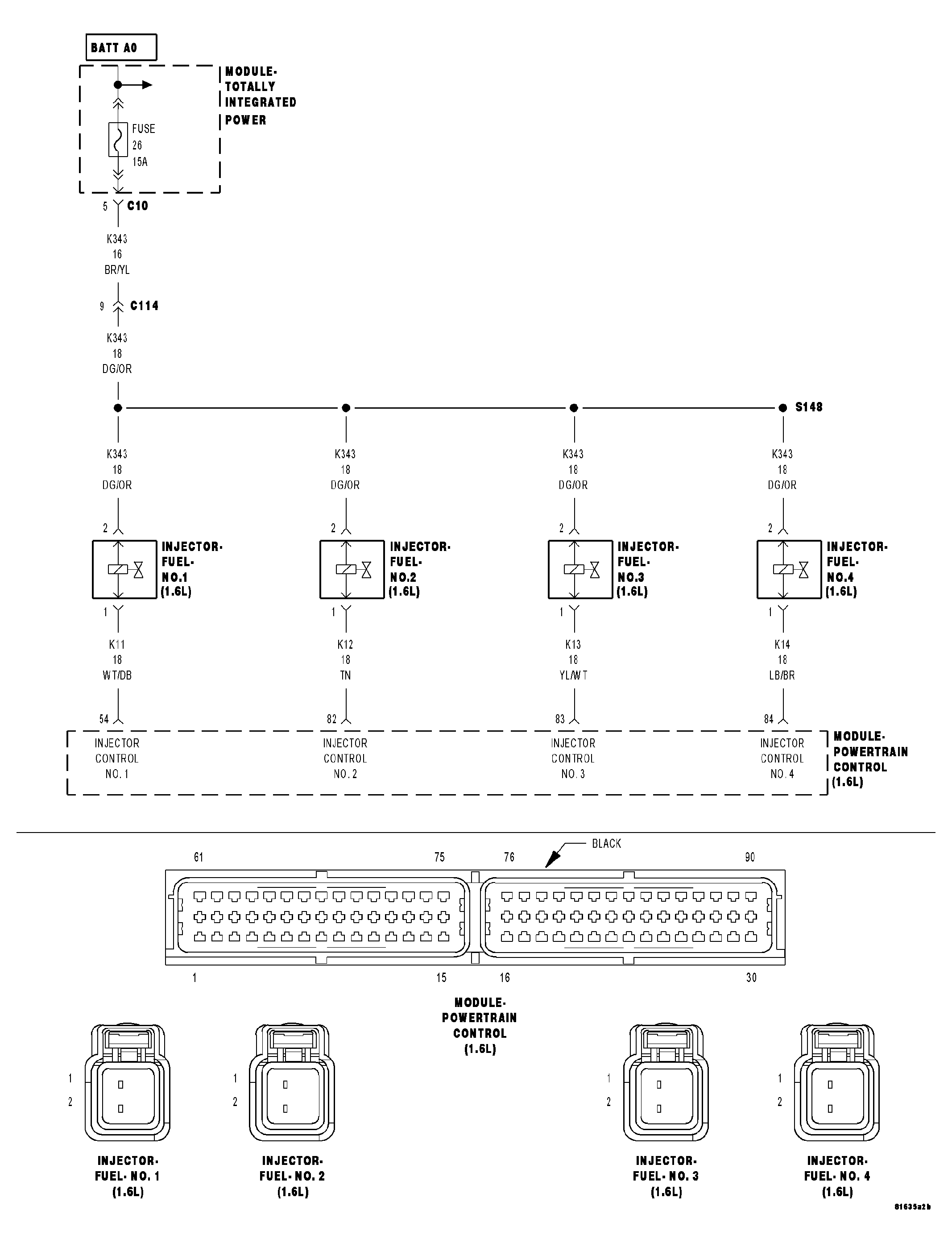

Fig 1: Injectors Control Circuit Schematic

GC0041850

Courtesy of DAIMLERCHRYSLER CORP.
