Home >> Chrysler >> 2006 >> PT Cruiser Base, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - Electrical Diagnostics >> Ignition System - Electrical Diagnostics >> DTC Troubleshooting >> B218B-Ignition Run/Start 1 Control Circuit OVERCURRENT >> Circuit Schematic

Circuit Schematic

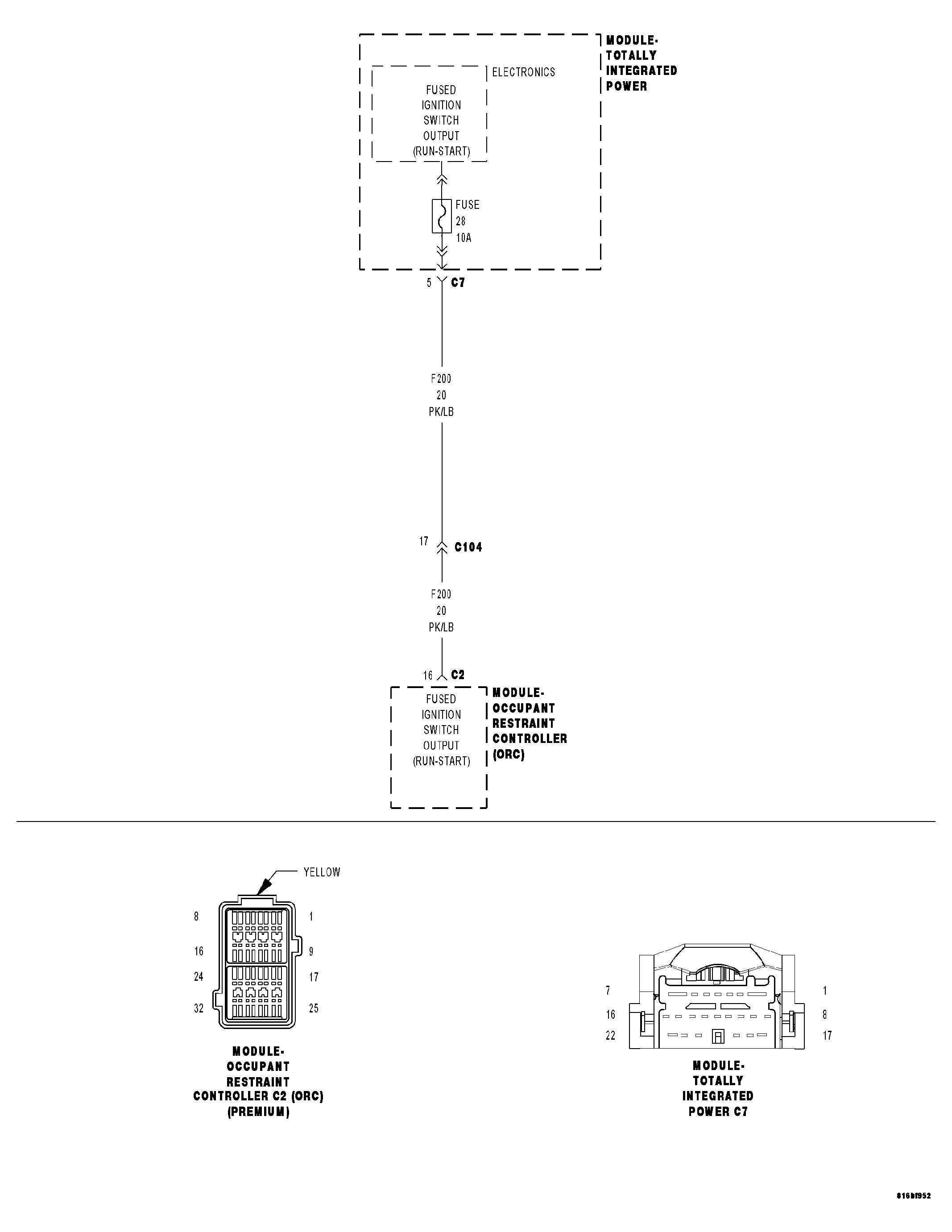

Fig 1: Ignition Run/Start 1 Control Circuit Schematic

GC0043566

Courtesy of DAIMLERCHRYSLER CORP.
