Intrusion Module: Installation

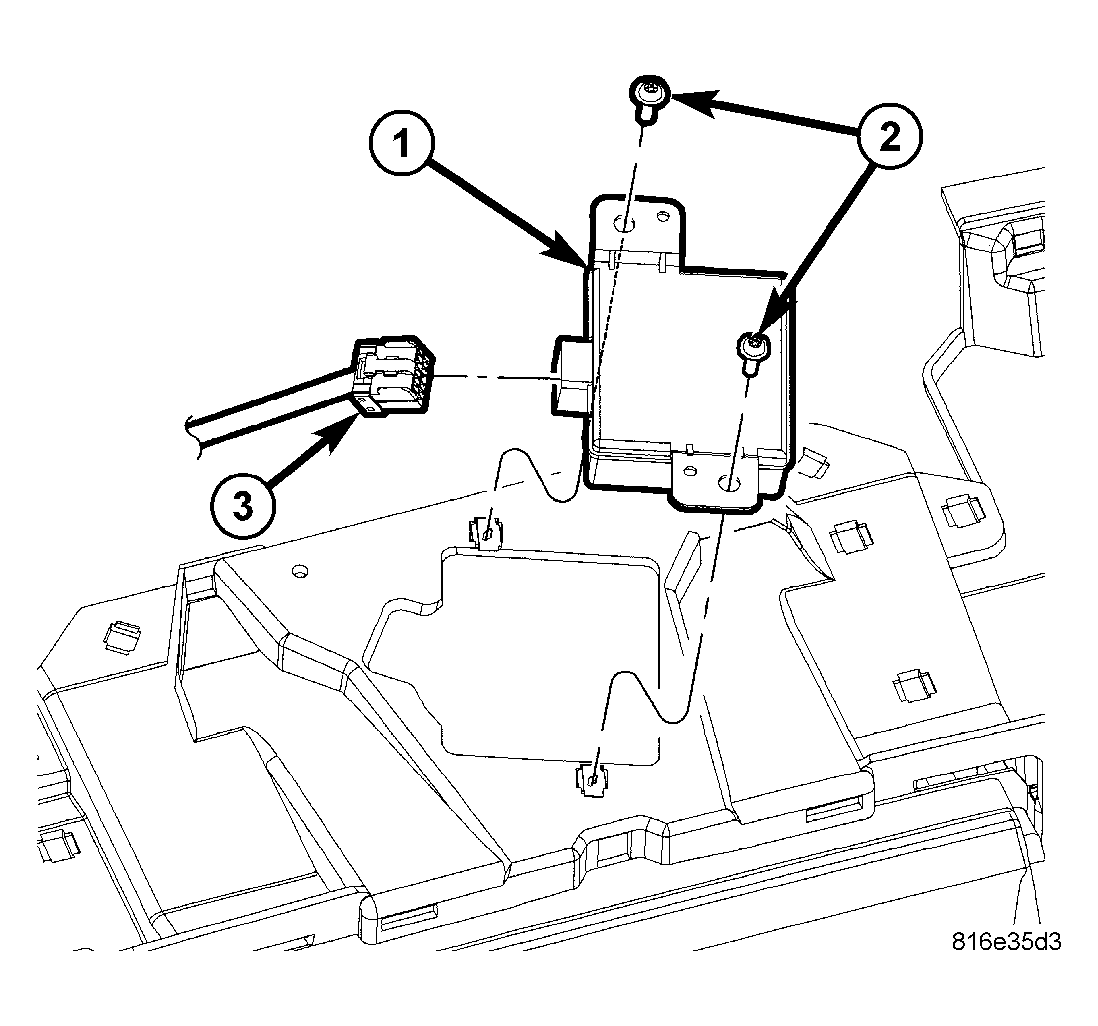

Fig 1: Removing/ Installing Intrusion Module
GC0041438Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the intrusion module (1) onto the instrument panel.
  2. Install the two screws (2) that secure the module (1) to the instrument panel.
  3. Connect the electrical connector (3) on the module (1).
  4. Install the instrument panel top cover (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION) .
  5. Connect the battery negative cable.
