Modulating Pressure Control Solenoid Valve

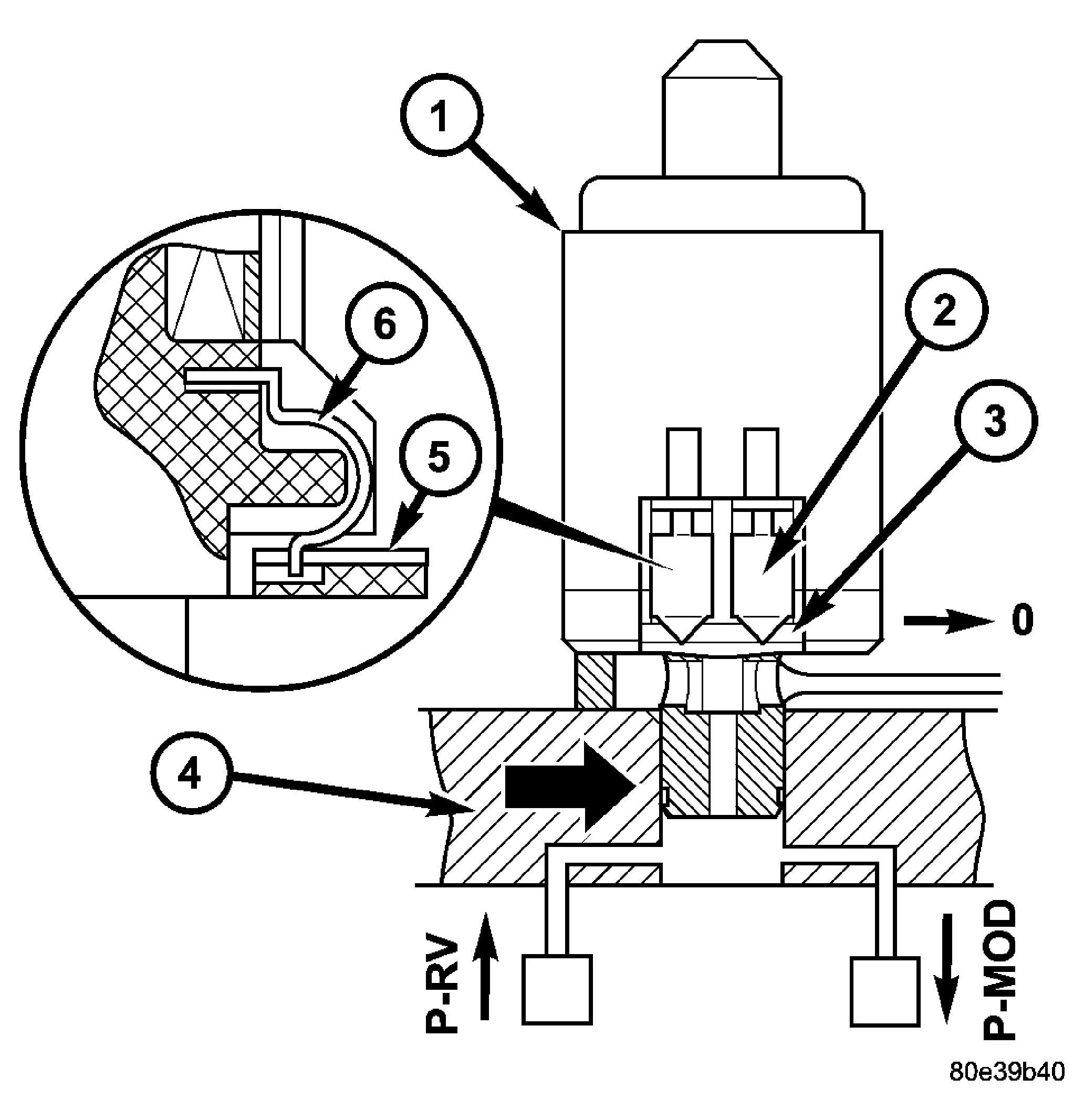

Fig 1: Modulating Pressure Control Solenoid Valve

Courtesy of DAIMLERCHRYSLER CORP.

1 - MODULATING PRESSURE CONTROL SOLENOID VALVE

2 - CONTACT SPRING

3 - CONDUCTOR TRACK

4 - VALVE HOUSING SHIFT PLATE

5 - CONDUCTOR TRACK

6 - CONTACT SPRING

The modulating pressure regulating solenoid valve (1) assigns a proportional pressure to the current which is controlled by the TCM according to the load. See Fig 1.
