Installation - Front
WARNING: This page is about a different car, the 2006 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front park brake cable to the vehicle.

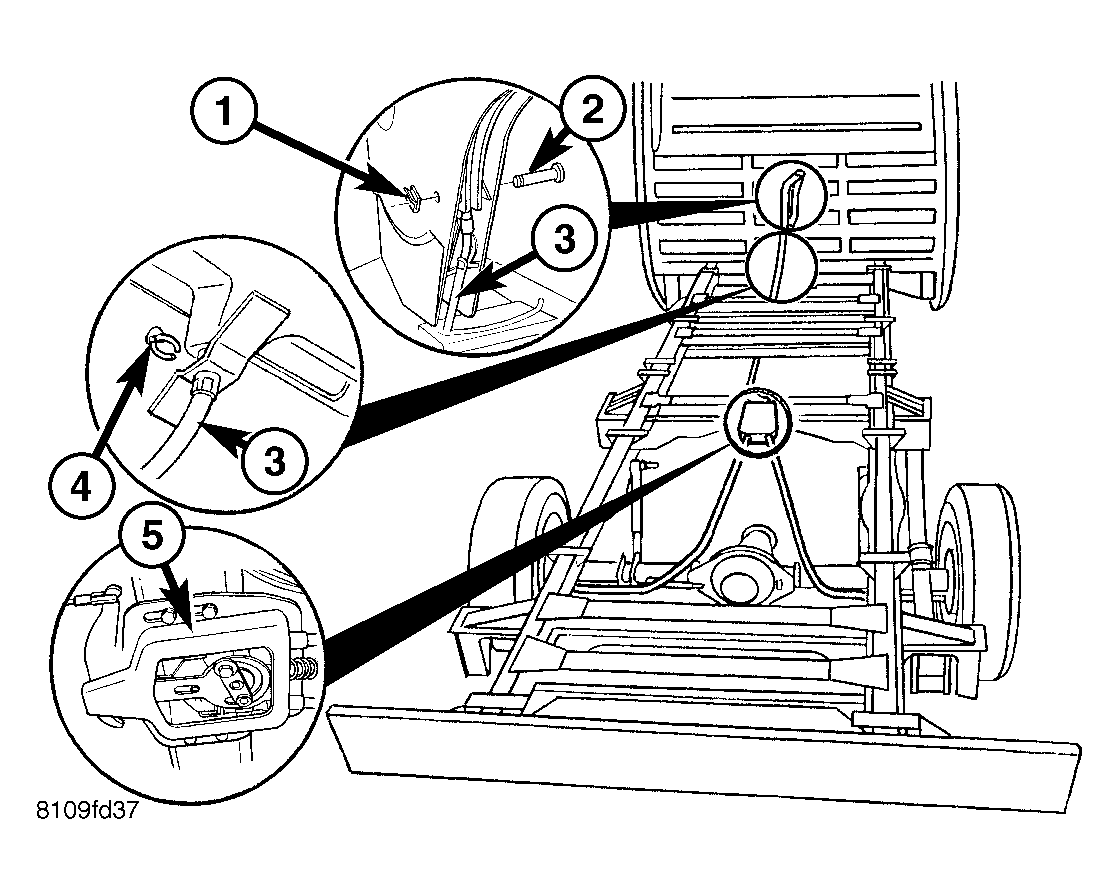

- Clip the cable guides at the frame cross members. See Fig 1.

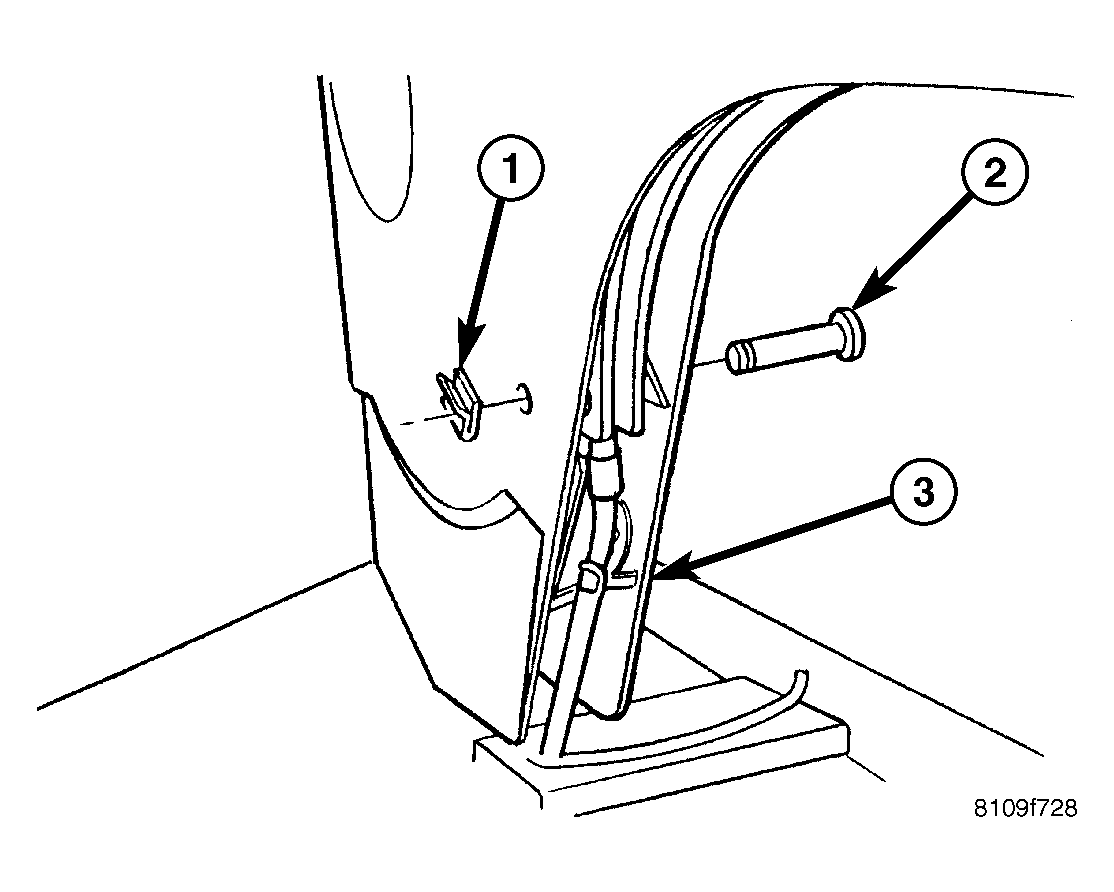

- Install the front park brake cable to the hand brake lever. See Figure.
- Reconnect the front park brake cable to the pulley unit. See Fig 1.
- Adjust the parking park.
- Lower the vehicle.
| 1 - RETAINING CLIP |
| 2 - LOCKING PIN |
| 3 - FRONT PARK BRAKE CABLE |
| 4 - RETAINING CLIP |
| 5 - PARK BRAKE CABLE ADJUSTER |
