P023A - Charge Air Cooler Circulation Pump Control Circuit: Notes

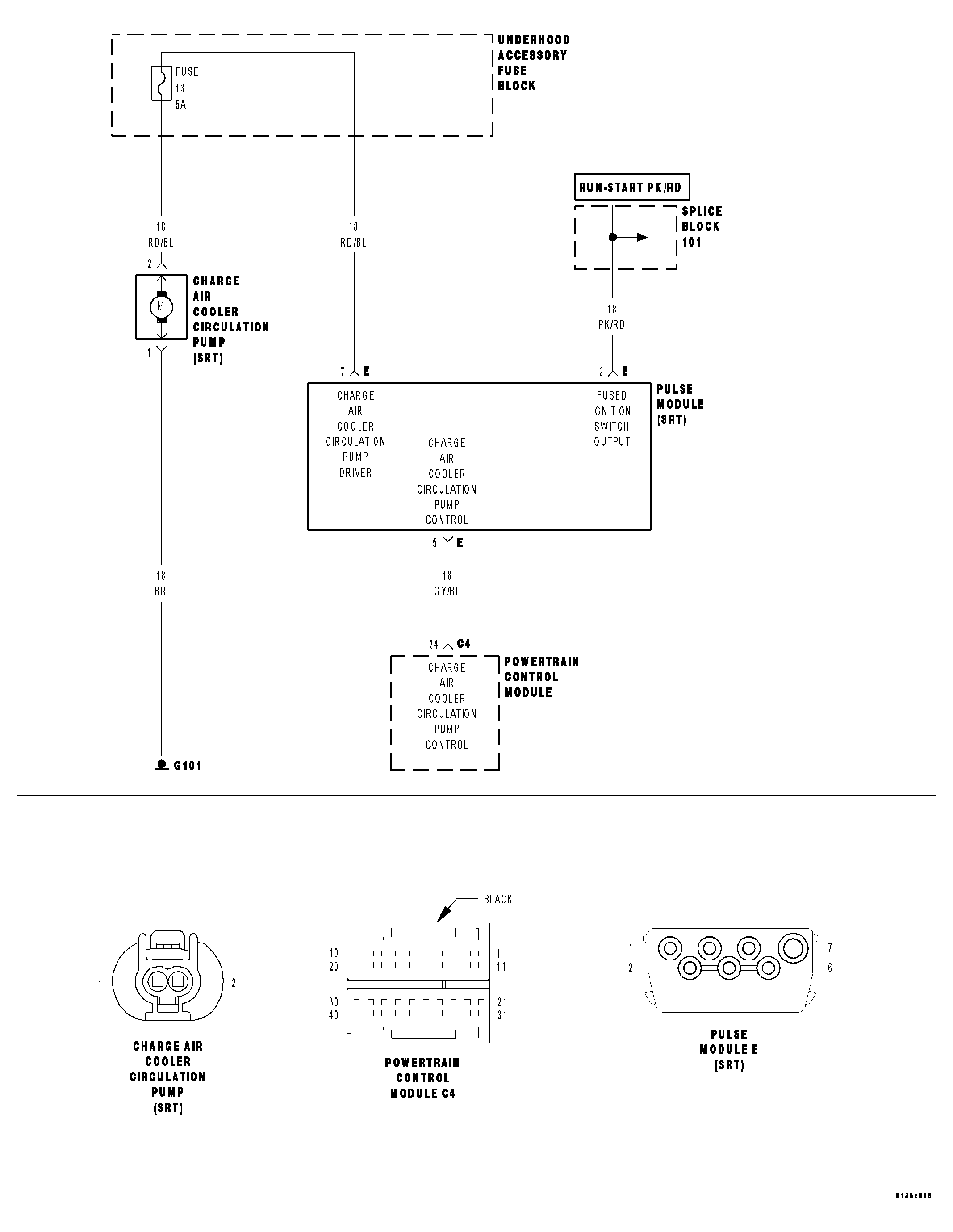

Fig 1: Charge Air Cooler Circulation Pump Control Circuit Schematic

GC0034186

Courtesy of DAIMLERCHRYSLER CORP.
