Schematics And Diagrams

Fig 1: Powertrain Control Module (Ignition System) Circuit Schematic
GC0034023Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Powertrain Control Module (Speed Control) Circuit Schematic
GC0034024Courtesy of DAIMLERCHRYSLER CORP.

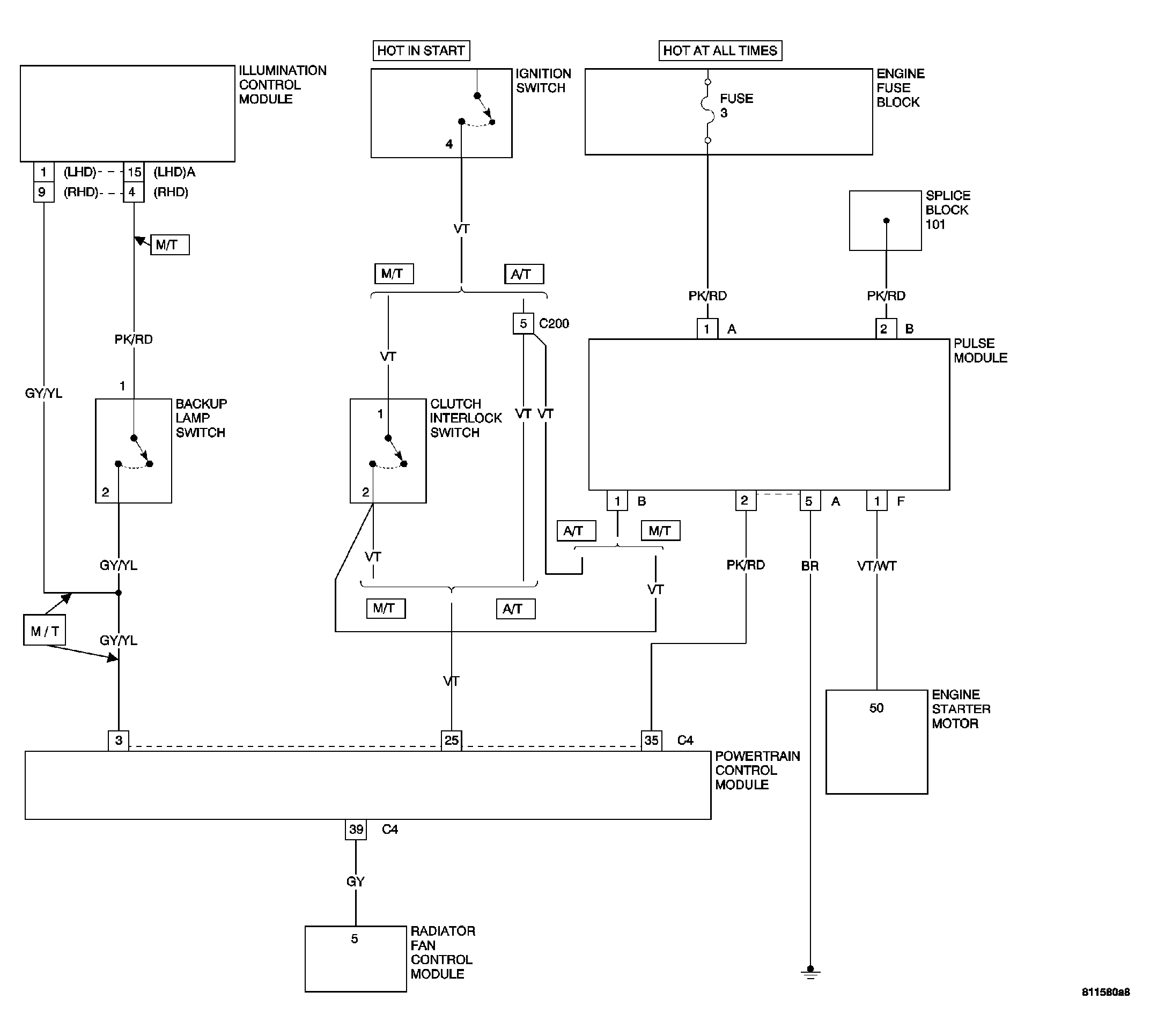

Fig 3: Powertrain Control Module Circuit Diagram (3 Of 9)
GC0034025Courtesy of DAIMLERCHRYSLER CORP.

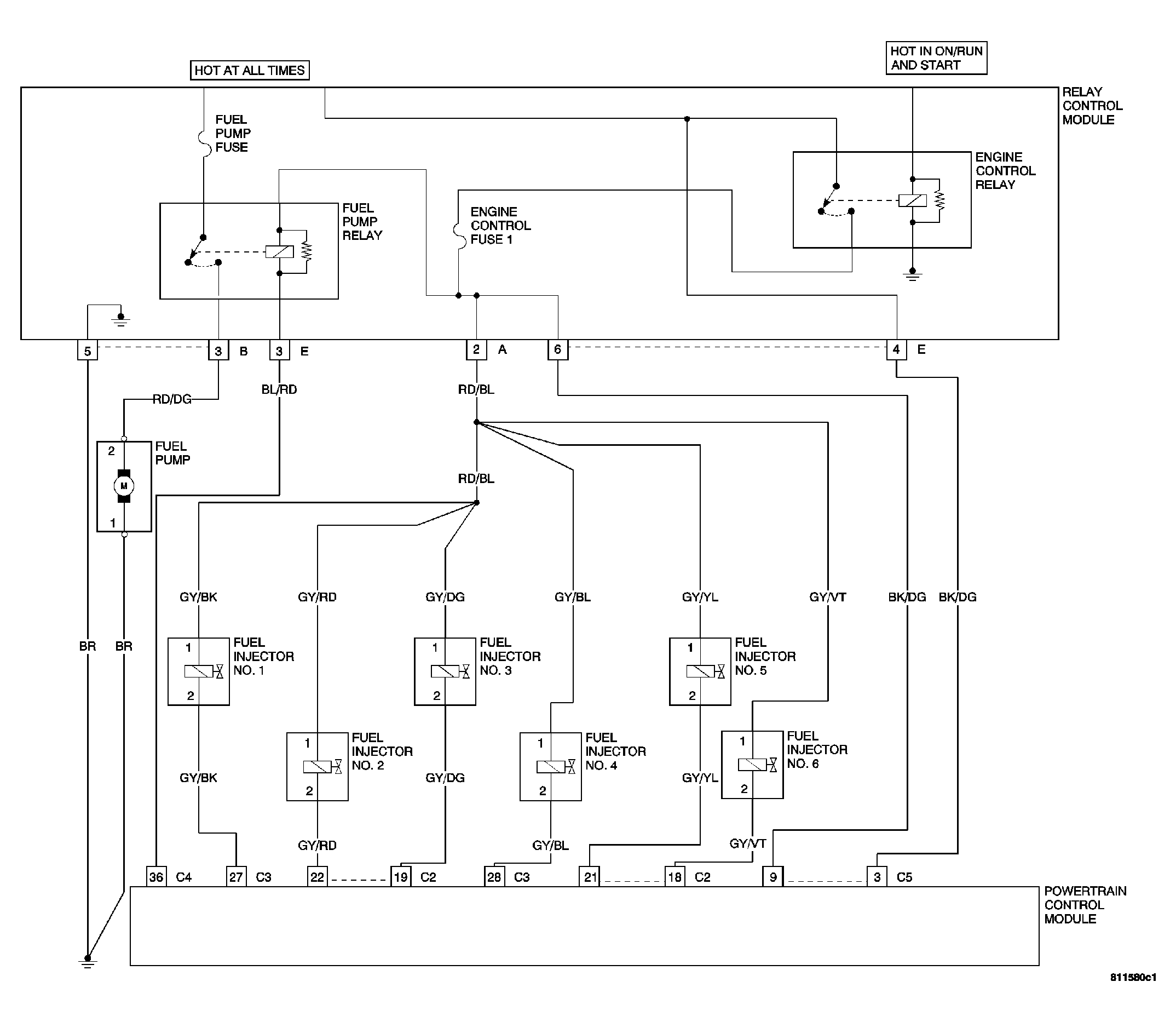

Fig 4: Powertrain Control Module Circuit Diagram (4 Of 9)
GC0034026Courtesy of DAIMLERCHRYSLER CORP.

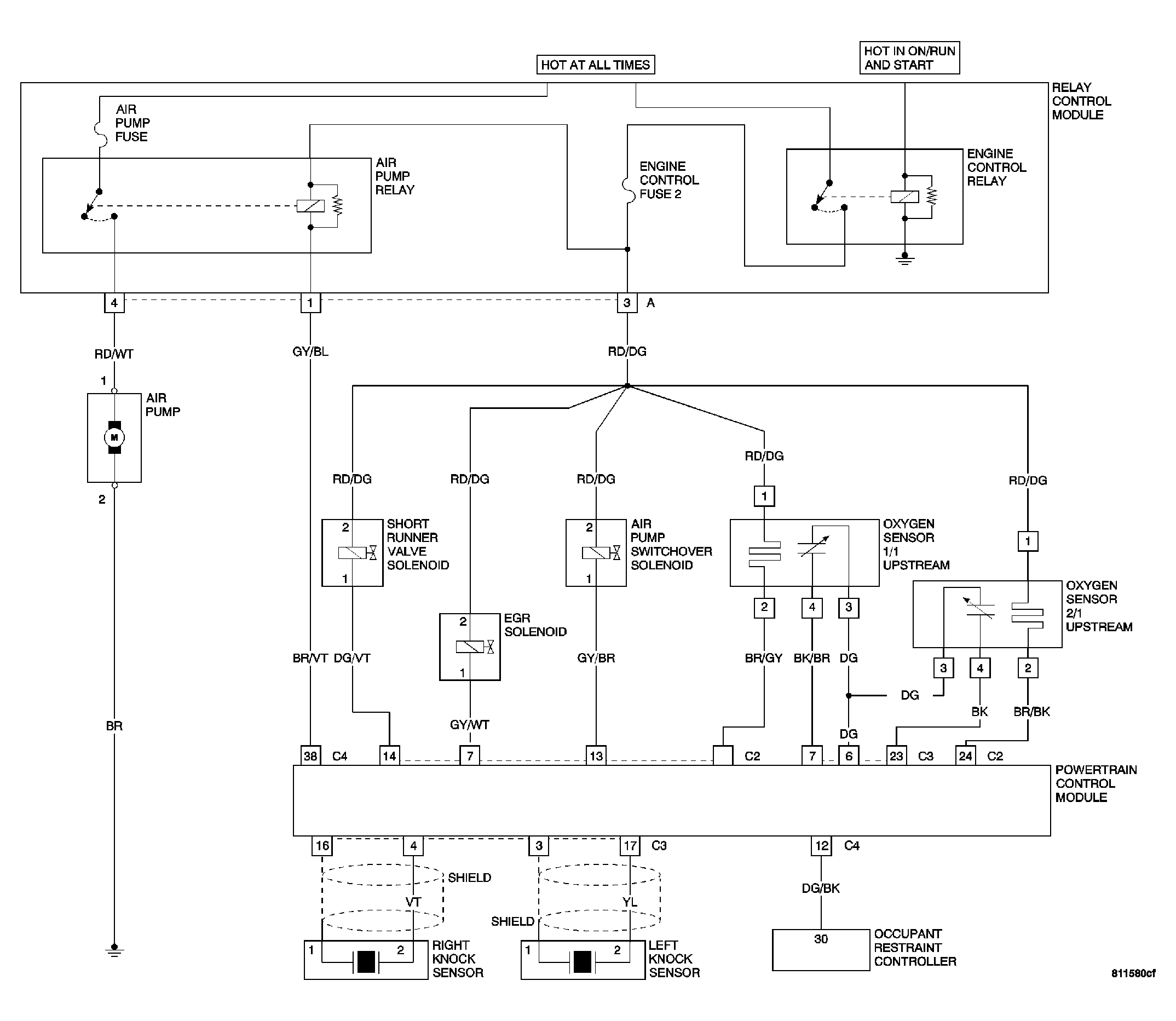

Fig 5: Powertrain Control Module Circuit Diagram (5 Of 9)
GC0034027Courtesy of DAIMLERCHRYSLER CORP.

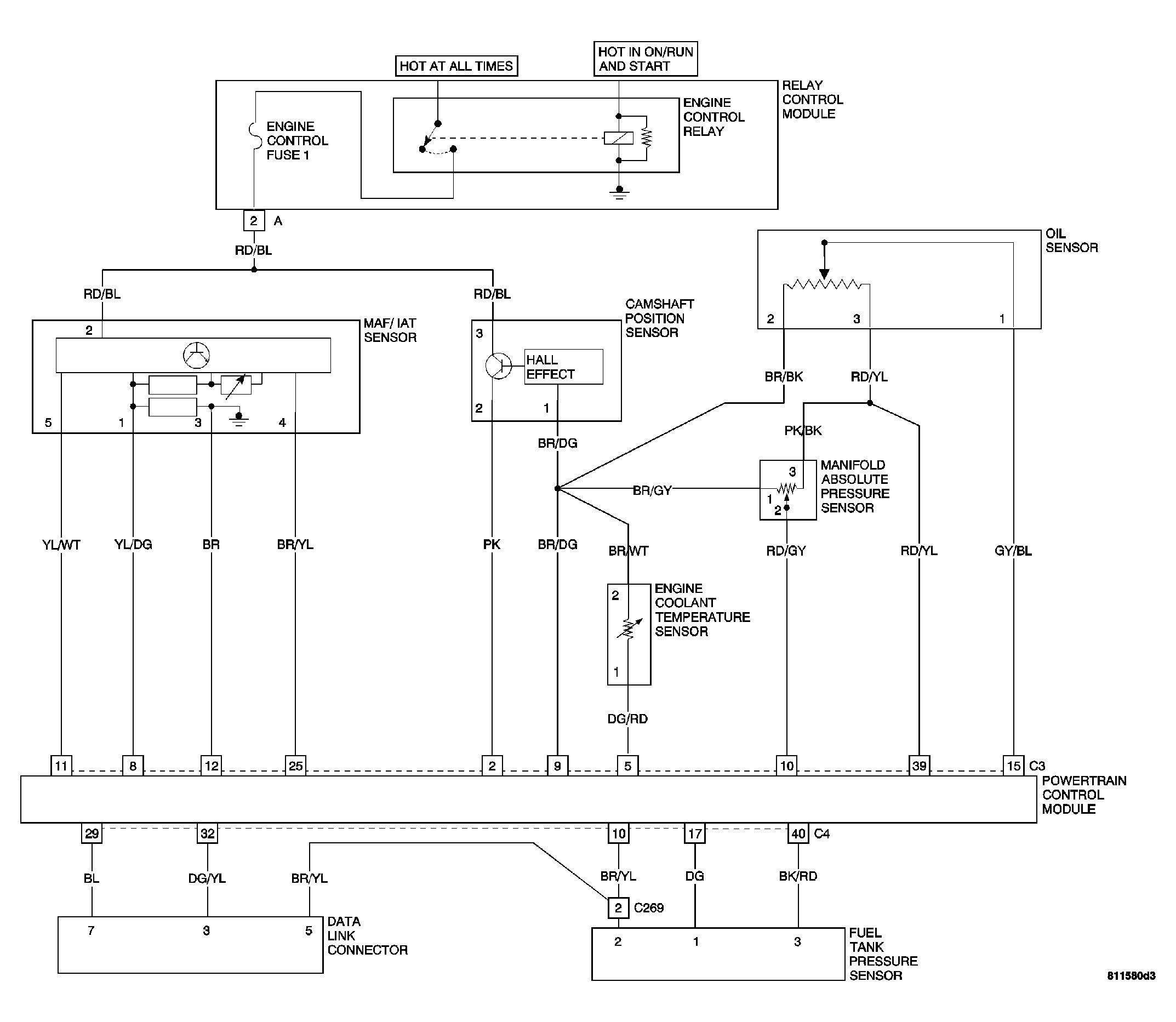

Fig 6: Powertrain Control Module Circuit Diagram (6 Of 9)
GC0034028Courtesy of DAIMLERCHRYSLER CORP.

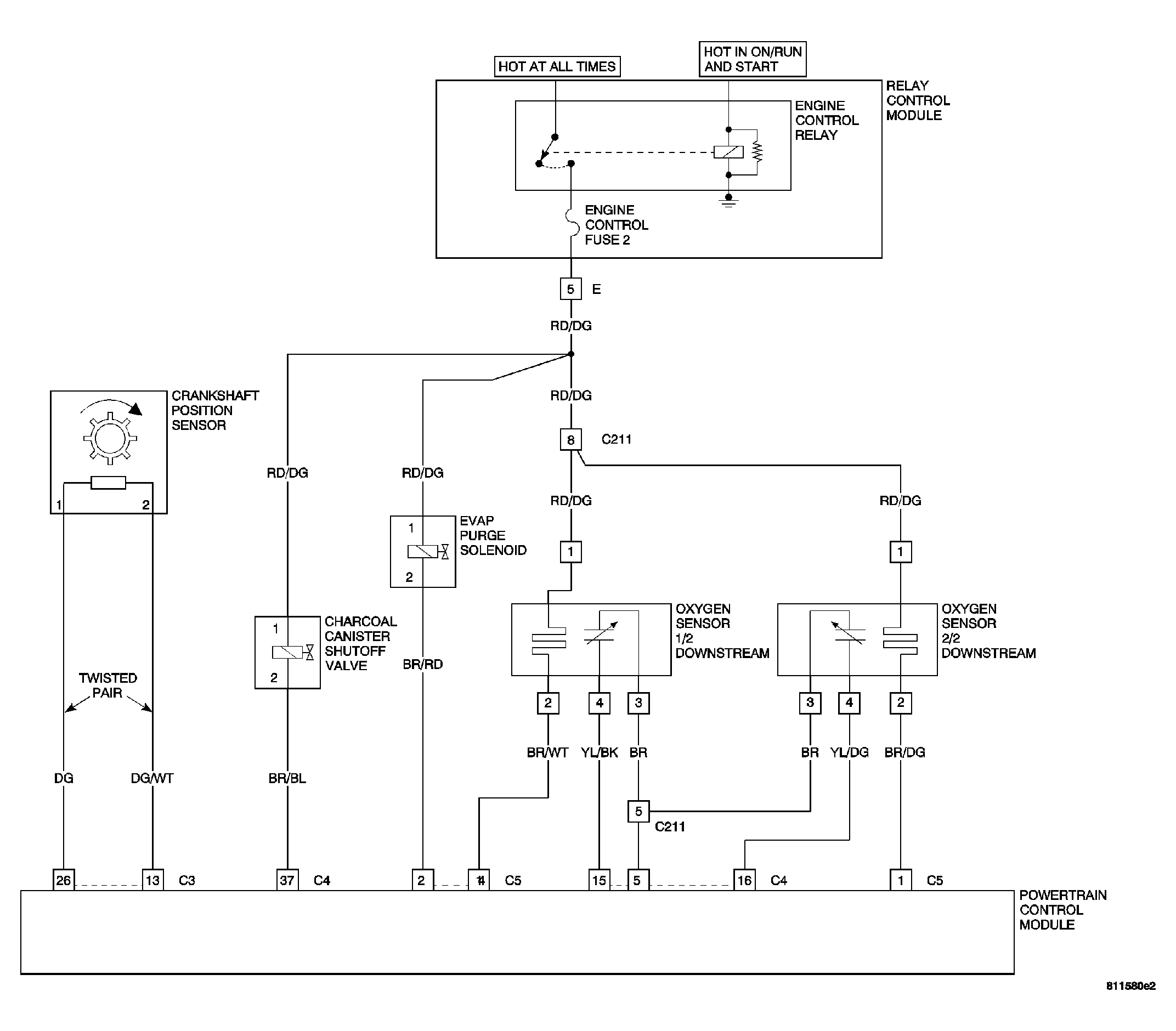

Fig 7: Powertrain Control Module Circuit Diagram (7 Of 9)
GC0034029Courtesy of DAIMLERCHRYSLER CORP.

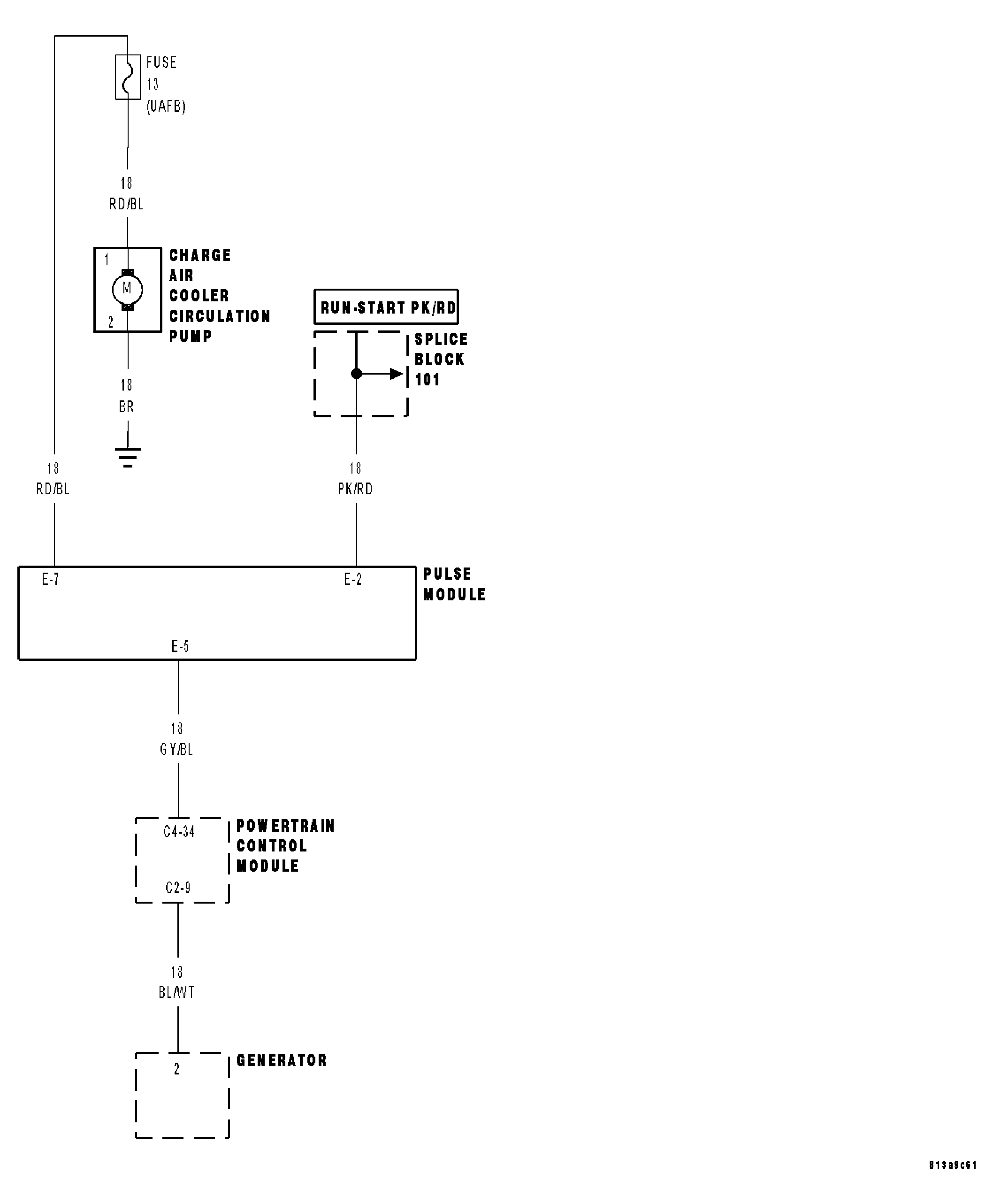

Fig 8: Powertrain Control Module Circuit Diagram-SRT(8 Of 9)
GC0034030Courtesy of DAIMLERCHRYSLER CORP.

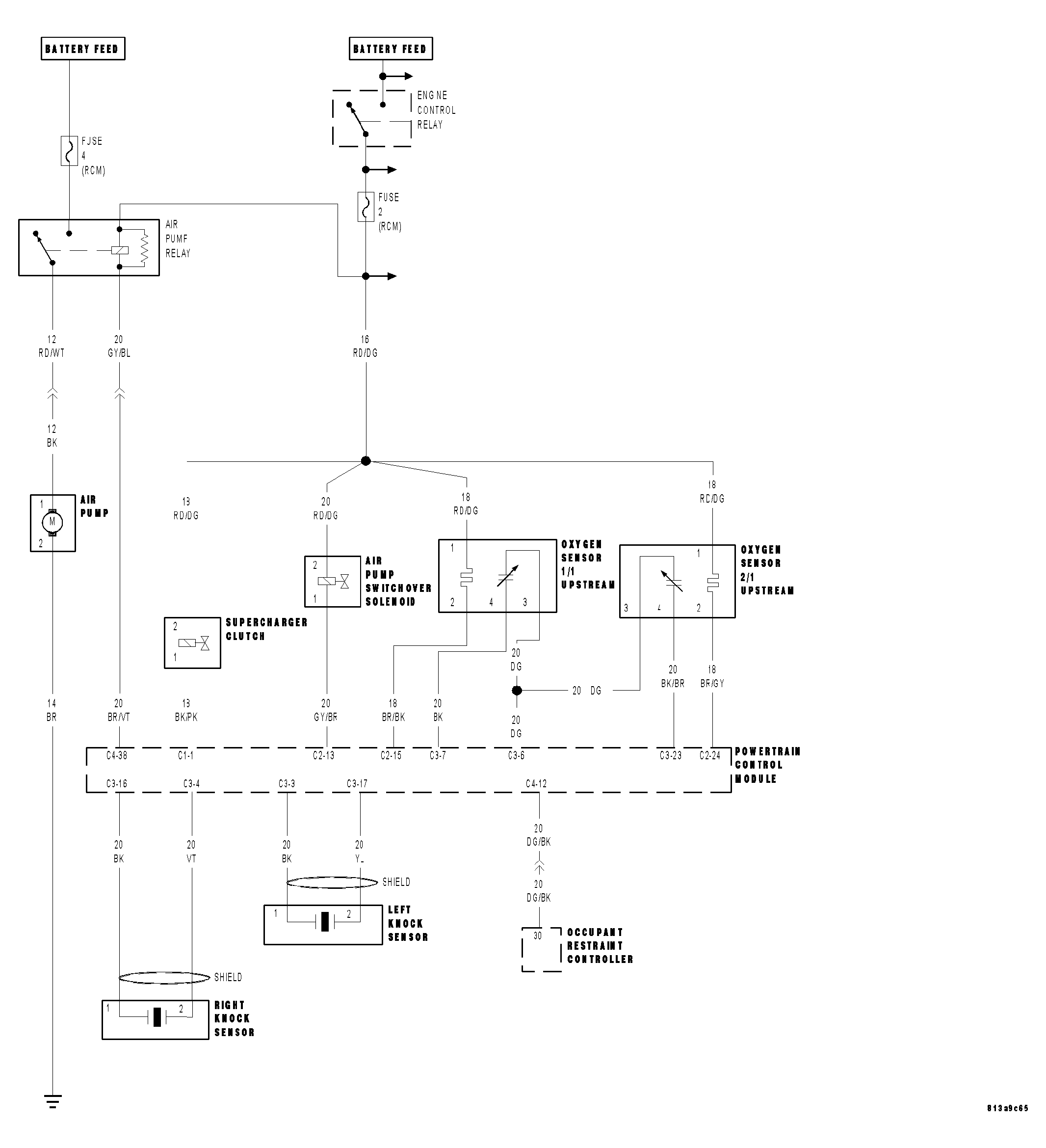

Fig 9: Powertrain Control Module Circuit Diagram-SRT (9 Of 9)
GC0034031Courtesy of DAIMLERCHRYSLER CORP.
