Home >> Chrysler >> 2006 >> 300 Base, 42RLE/VLP >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> DTCS B210E To U0141 >> Diagnosis And Testing >> B212C-Ignition Run/Start Input Circuit Open >> Circuit Schematic

Circuit Schematic

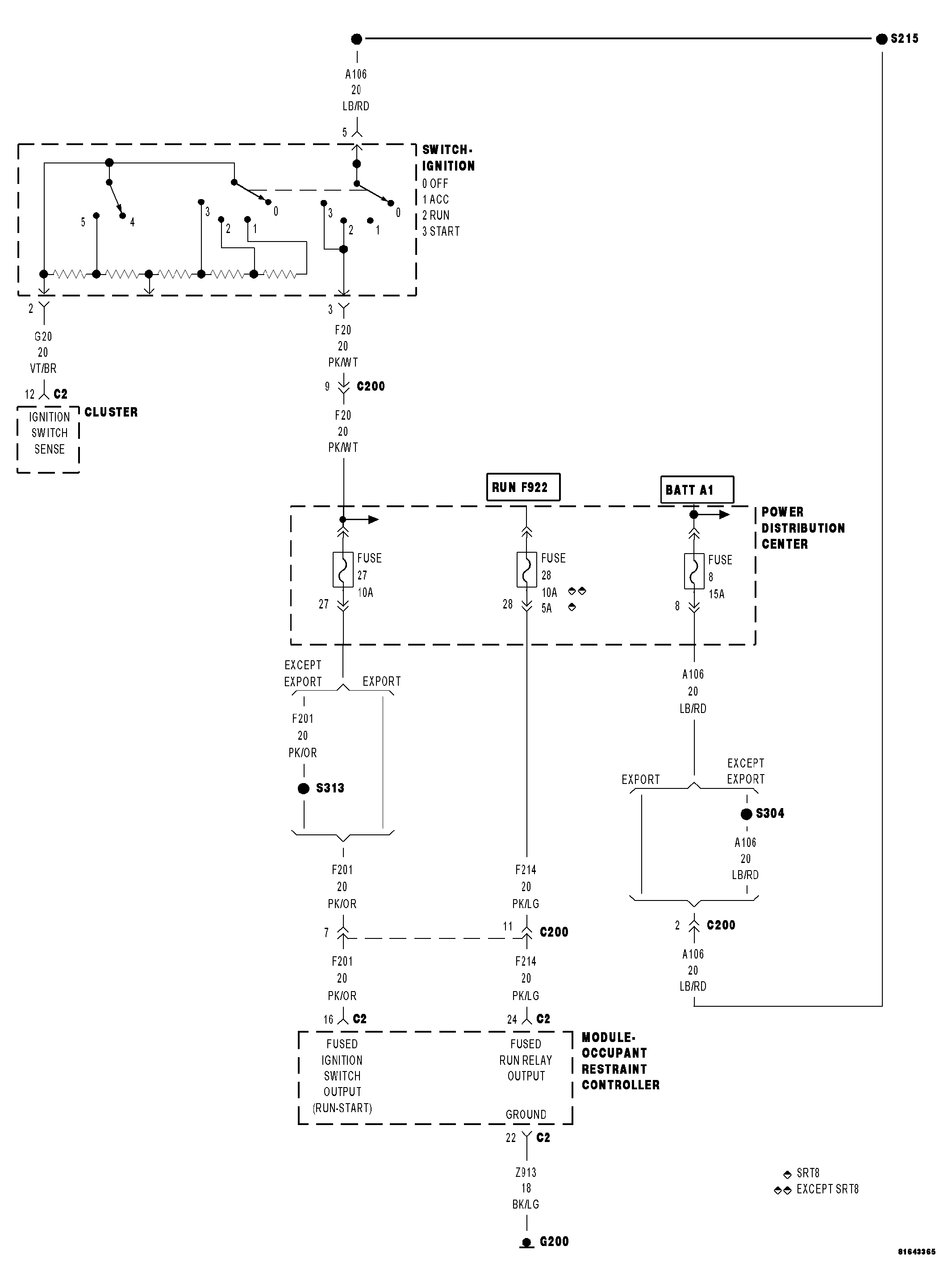

Fig 1: Occupant Restraint Controller & Switch Ignition Circuit Diagram

GC0040855

Courtesy of DAIMLERCHRYSLER CORP.
