*No Response With A No Start Condition: Notes

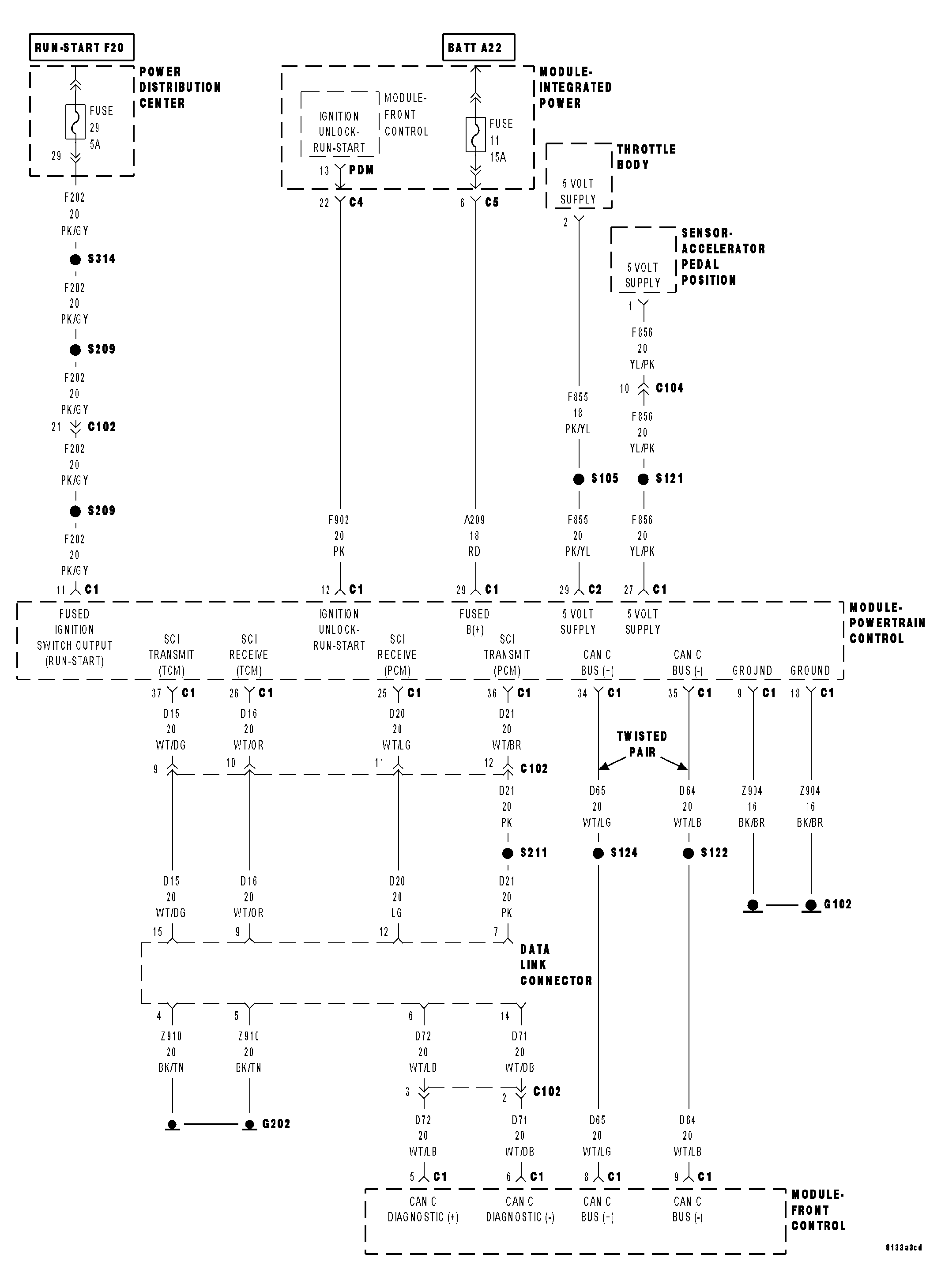

Fig 1: PCM Power & Communication Circuit Schematic

Courtesy of DAIMLERCHRYSLER CORP.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article.

Possible Causes
(K51) ASD CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE
(K51) ASD CONTROL CIRCUIT OPEN
(K51) ASD CONTROL CIRCUIT SHORTED TO GROUND
(A209) PCM FUSED B+ CIRCUIT
(F202) (F902) PCM FUSED IGNITION SWITCH OUTPUT CIRCUITS
(Z904) PCM GROUND CIRCUITS
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
PCM
