Home >> Chrysler >> 2006 >> 300 Base, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - DTCS P0481 To P0580 >> Diagnosis And Testing >> P0532-A/C Pressure Sensor Circuit Low >> Circuit Schematic

Circuit Schematic

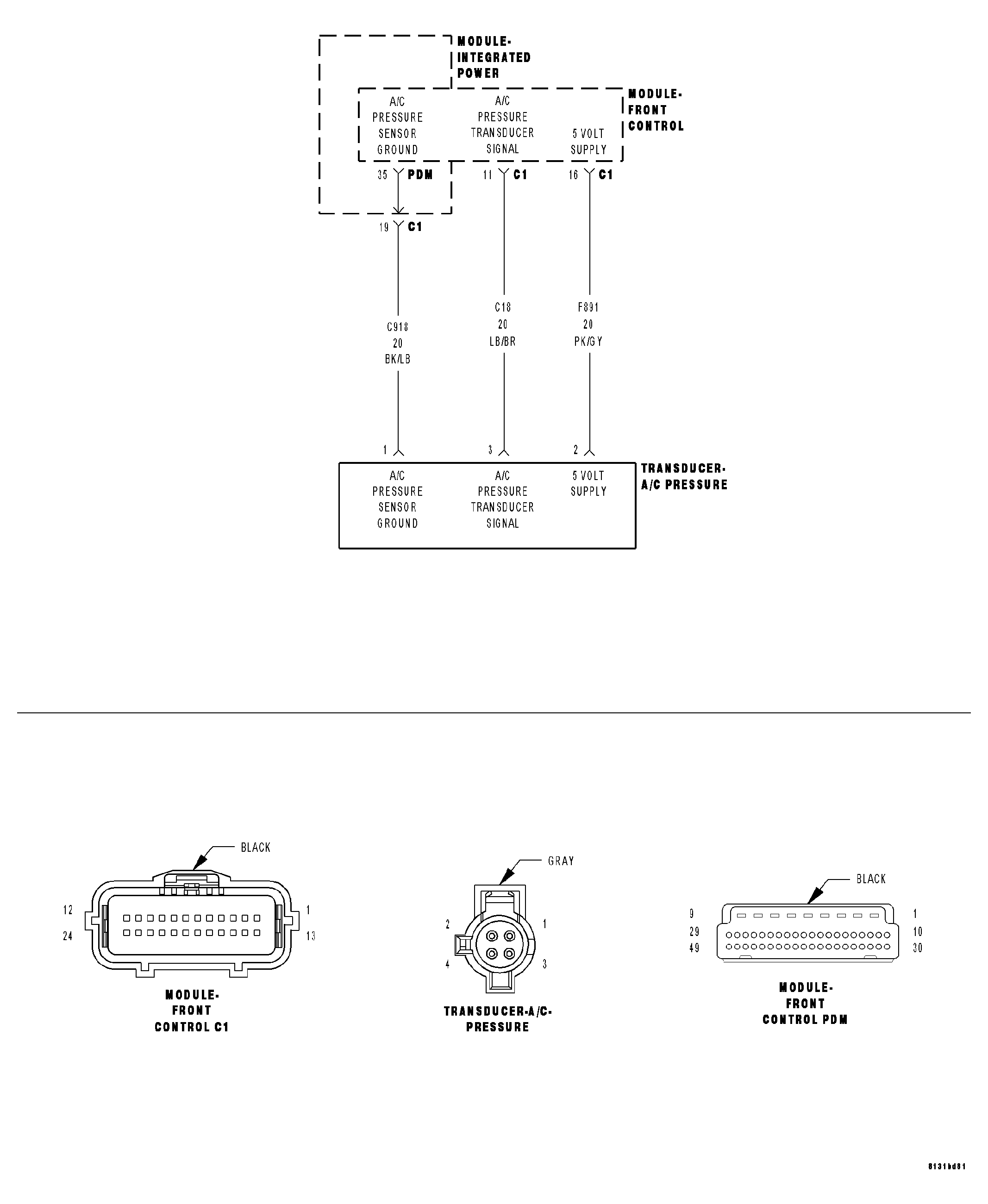

Fig 1: A/C Pressure Transducer Circuit Schematic

GC0015029

Courtesy of DAIMLERCHRYSLER CORP.
