Home >> Chrysler >> 2006 >> 300 Base, 42RLE/VLP >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - DTCS P0196 To P0325 >> Diagnosis And Testing >> P0325-Knock Sensor 1 Circuit >> Circuit Schematic

Circuit Schematic

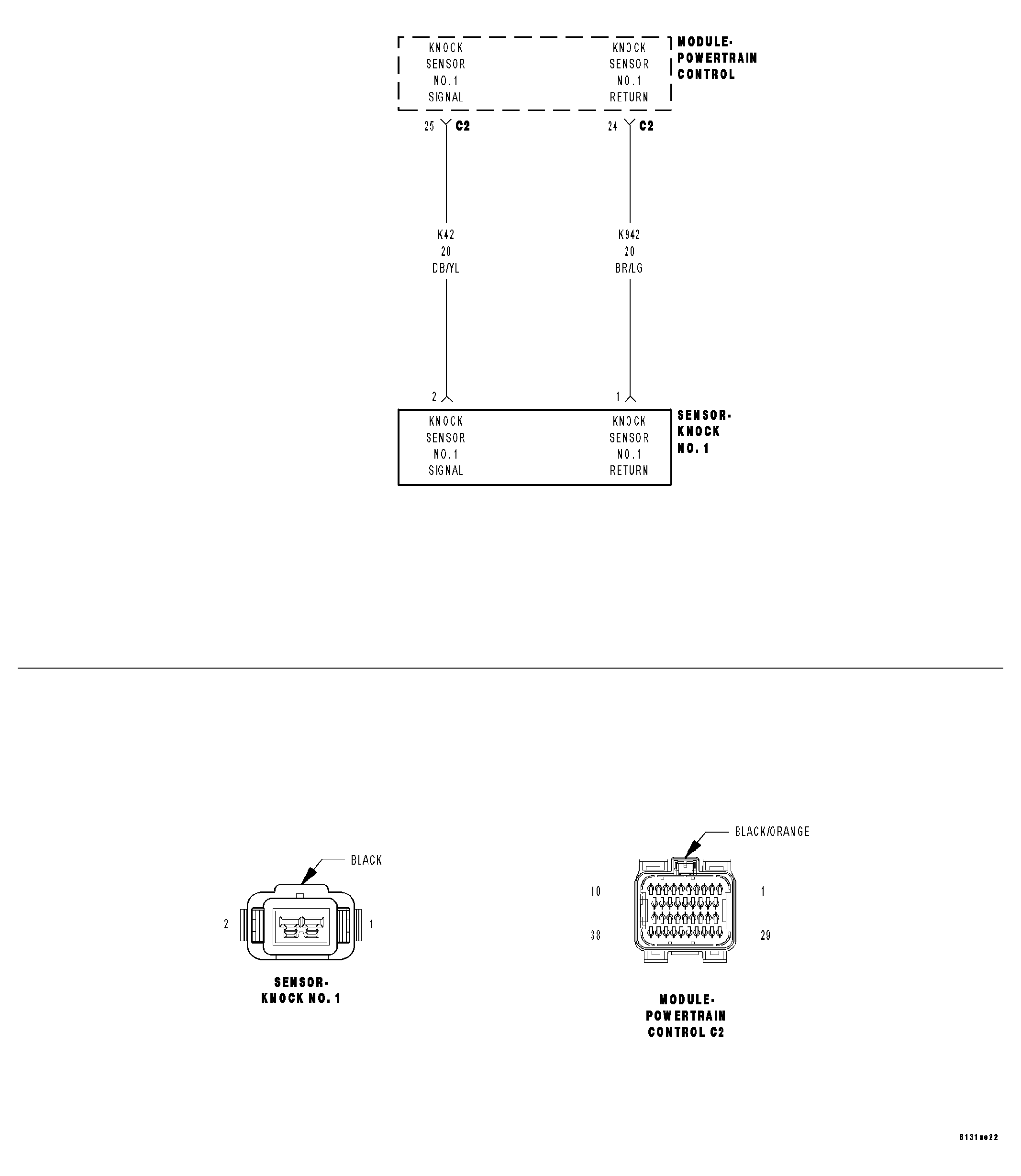

Fig 1: Knock Sensor 1 Circuit Schematic

GC0014939

Courtesy of DAIMLERCHRYSLER CORP.
