Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Never disassemble the BJ assembly except when replacing the BJ boot.

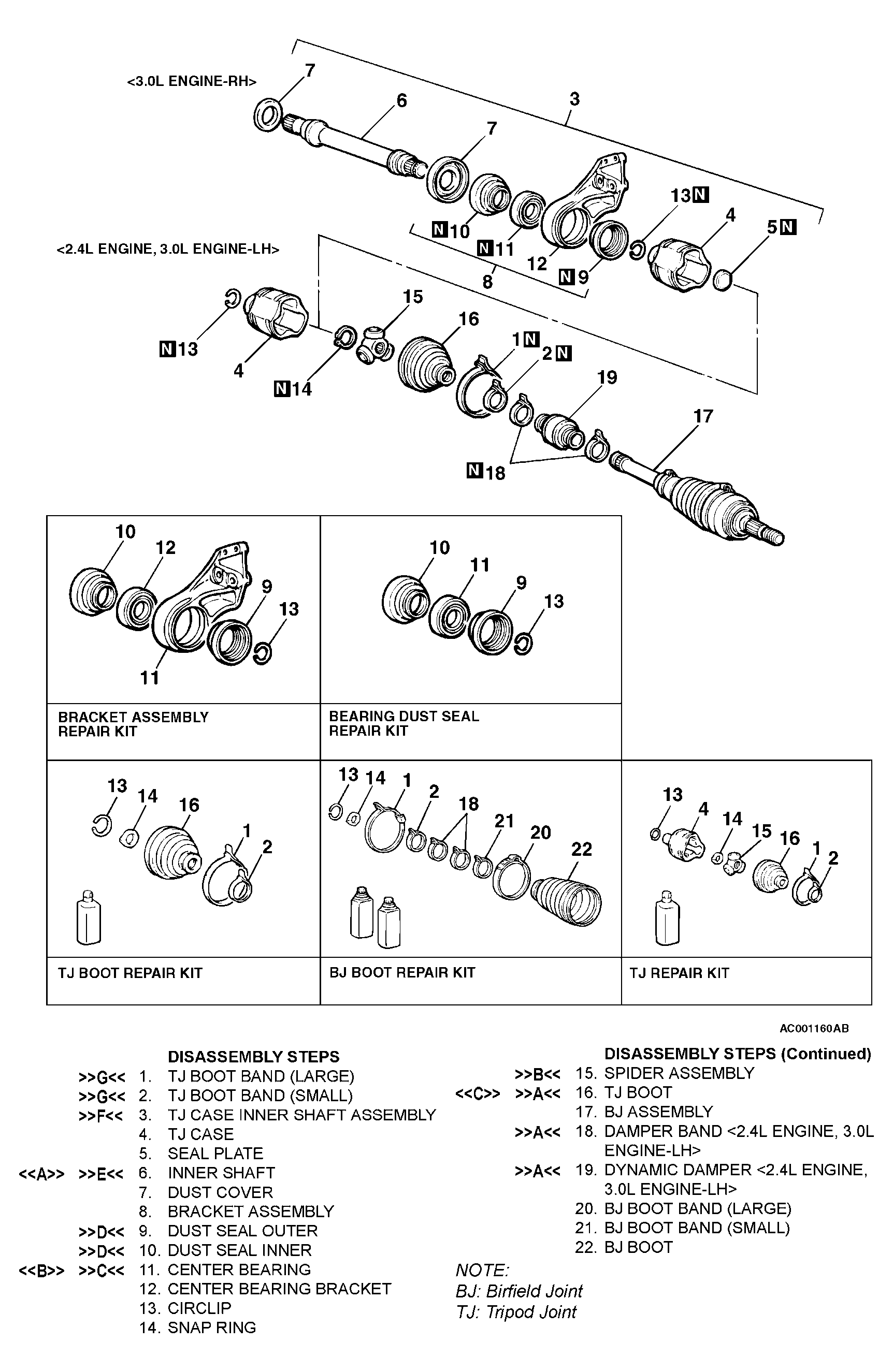

Fig 1: Disassembly/Assembly Drive Shaft Assembly
G04537013Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:
