Power Distribution Center

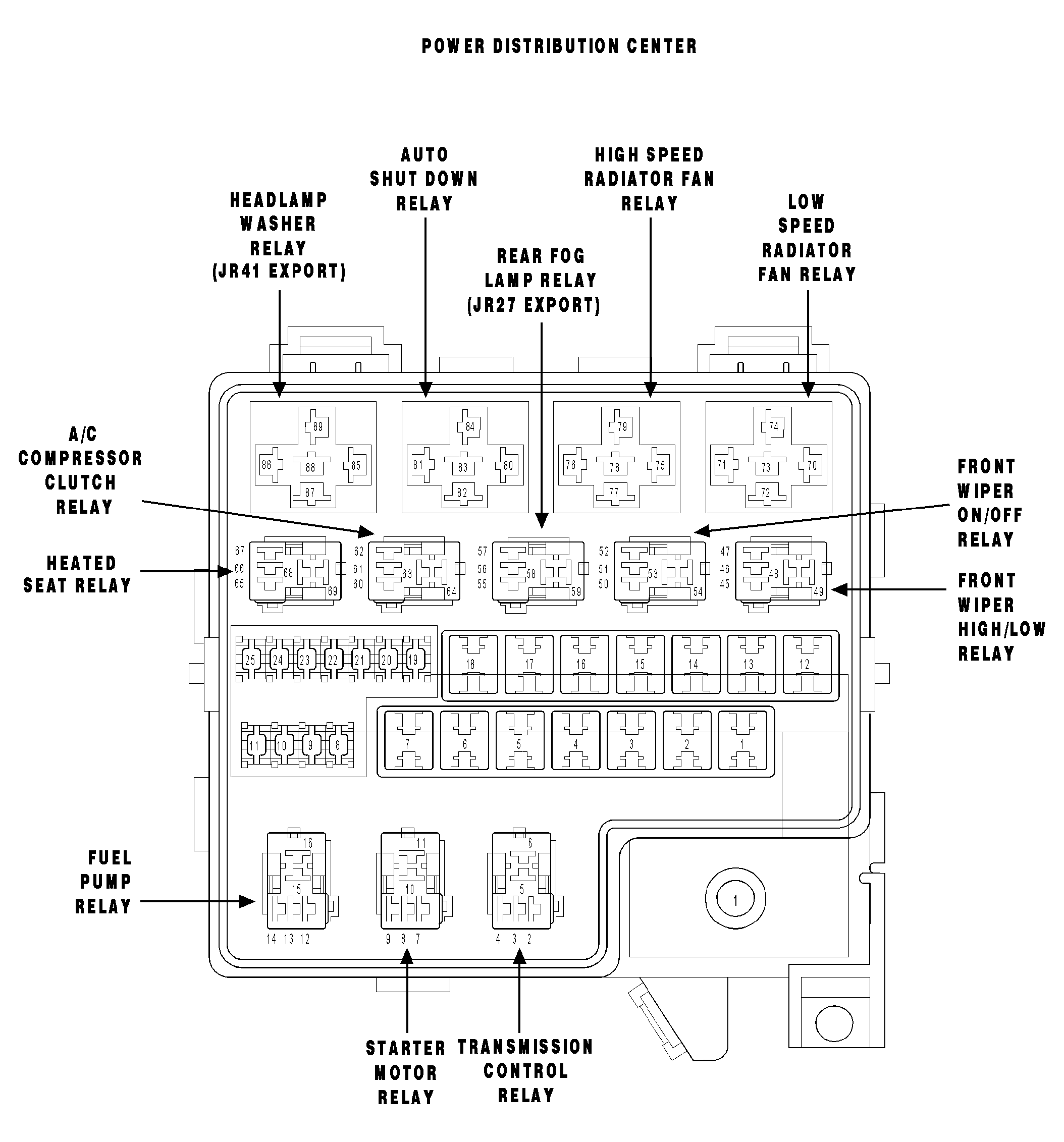

Fig 1: Power Distribution Center

G04536336

Courtesy of DAIMLERCHRYSLER CORP.

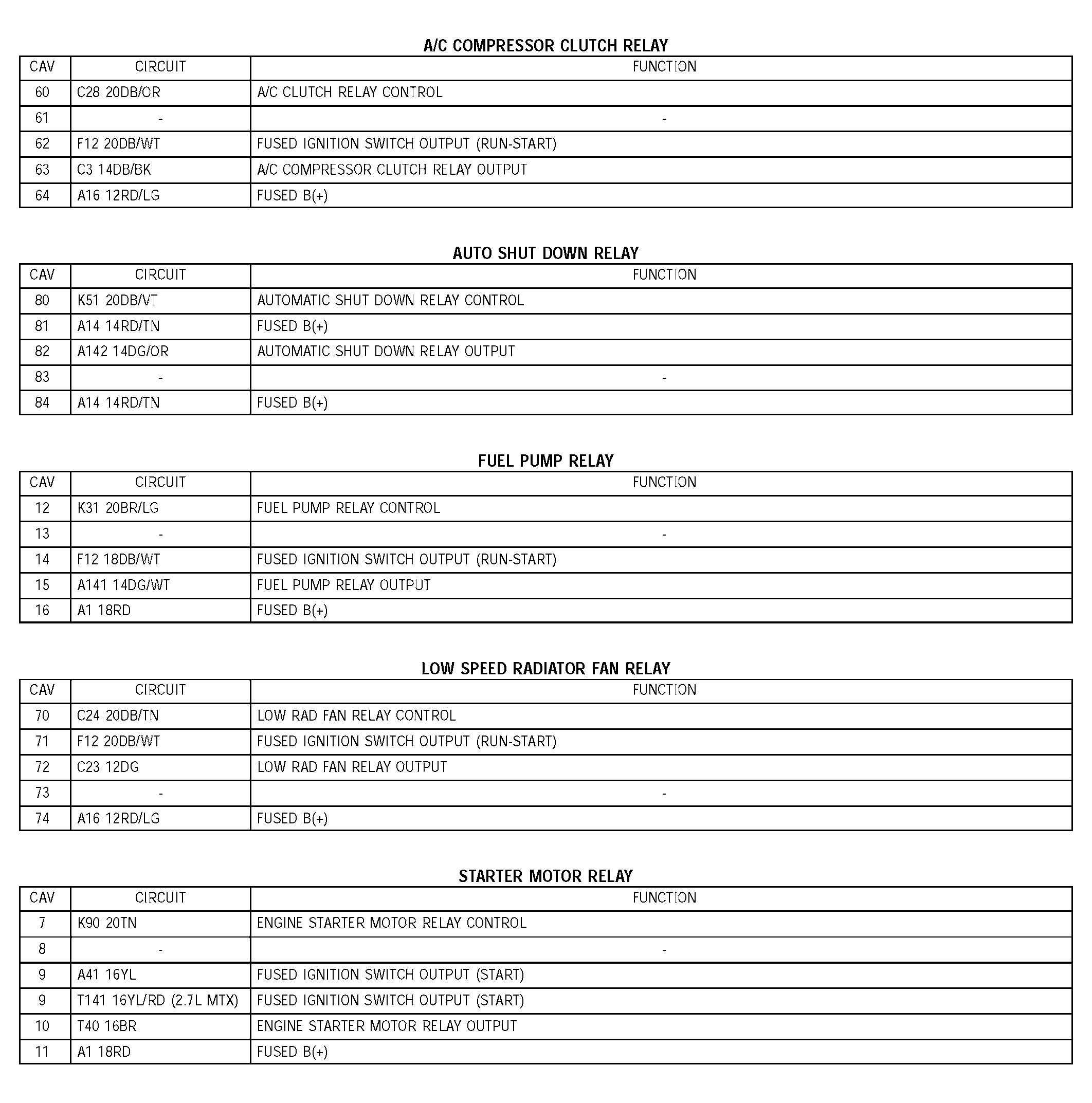

Fig 2: Power Distribution Center Fuse & Relay Chart

G04536337

Courtesy of DAIMLERCHRYSLER CORP.
