Air Bag Restraint Systems - Coupe: General Description: Schematic

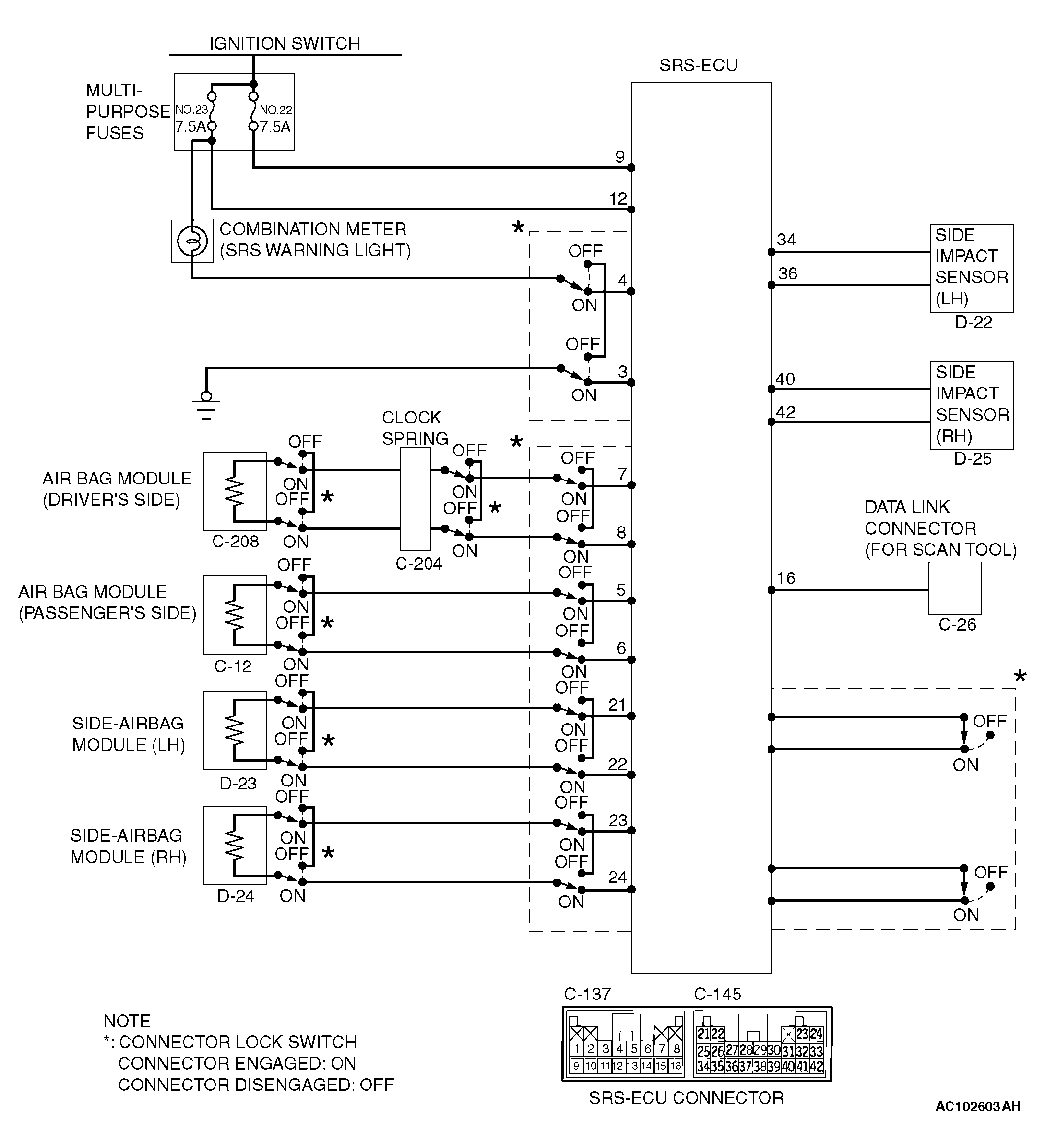

Fig 1: Restraint System - Schematic Diagram

G04537691

Courtesy of DAIMLERCHRYSLER CORPORATION
