Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so as not to damage it by striking against other parts.

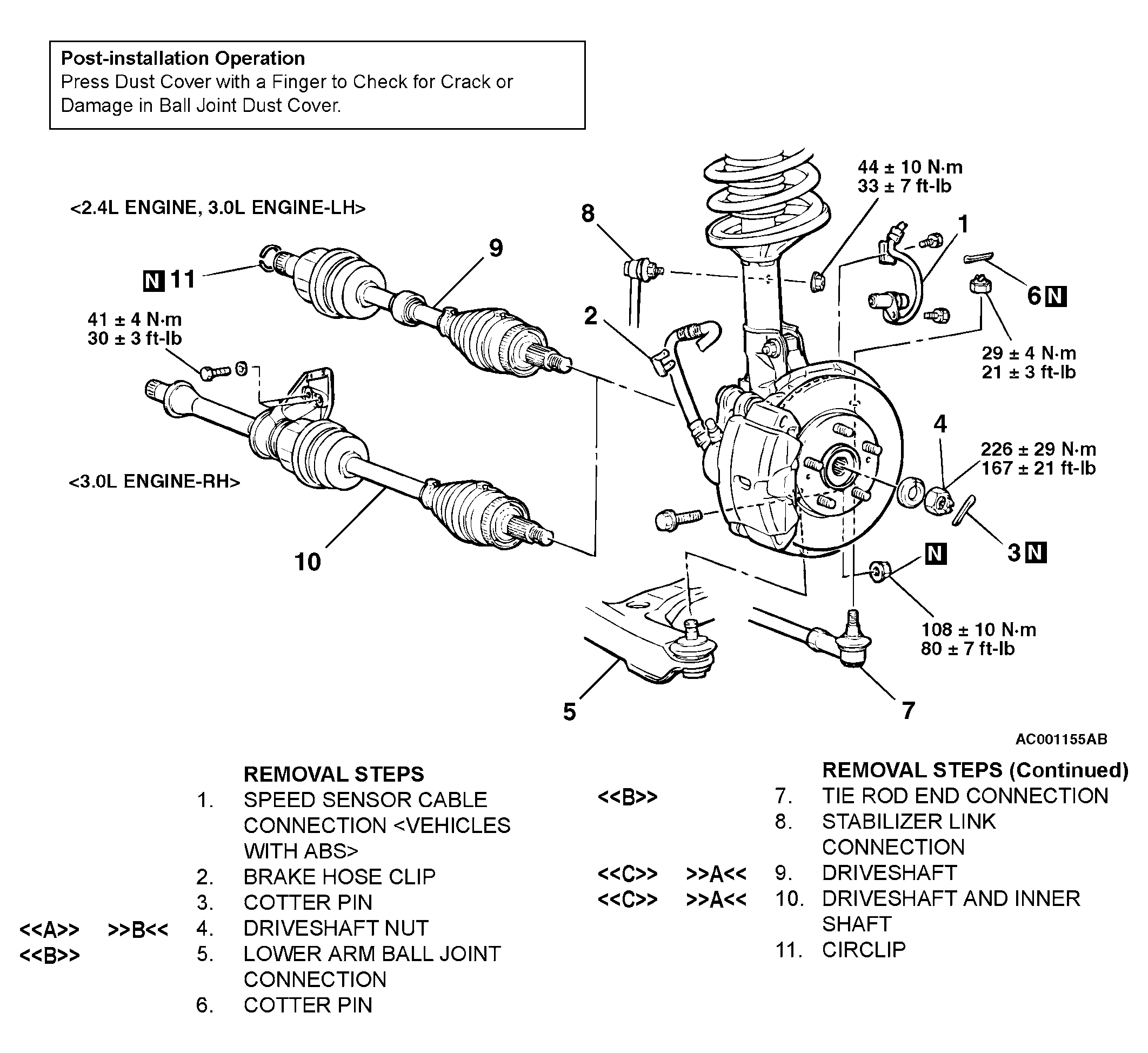

Fig 1: Removing/Installing Drive Shaft Assembly
G04537004Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:
