Fuel Pump Module - 4 Way

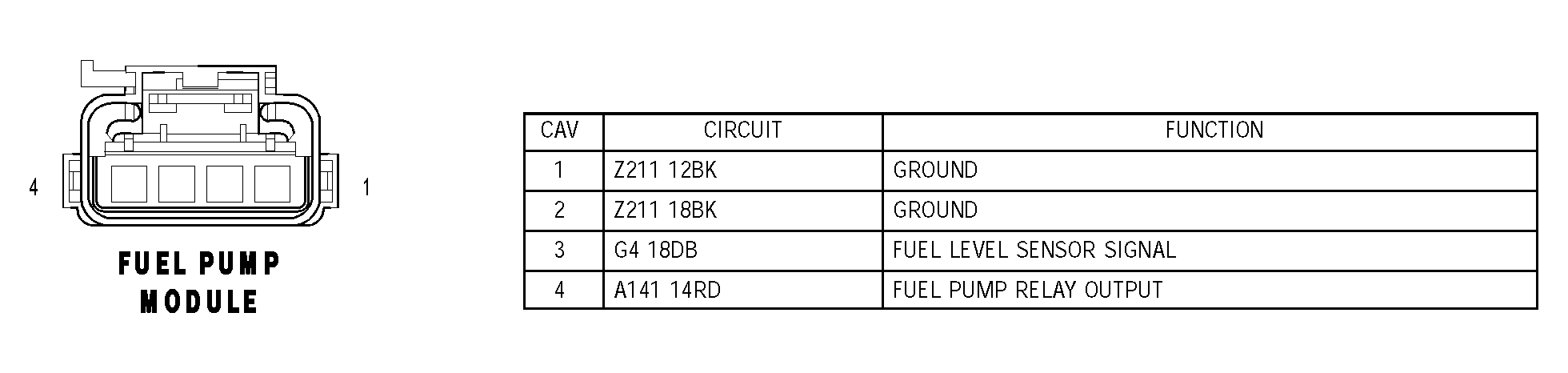

Fig 1: Identifying Fuel Pump Module Connector

G04536318

Courtesy of DAIMLERCHRYSLER CORP.
