Ignition Coil, Generator And 2/1 O2 Sensor Component Location - 2.7L

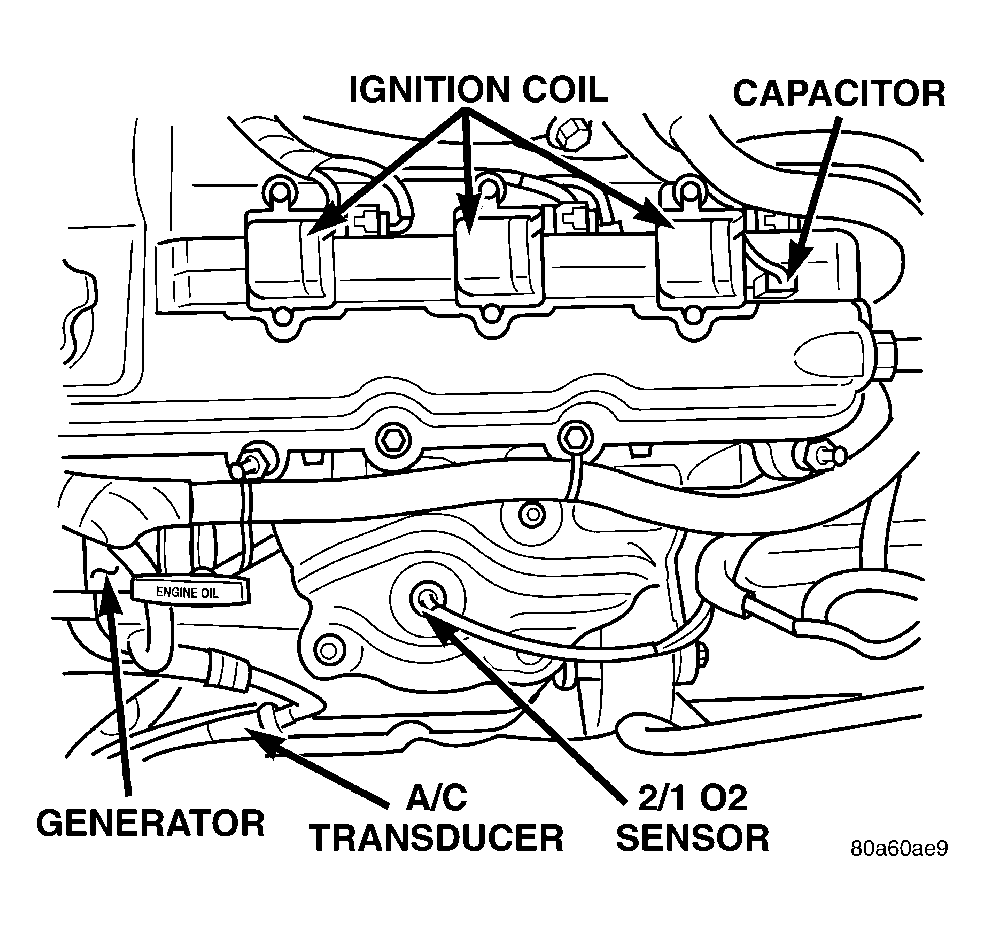

Fig 1: Identifying Ignition Coil, Generator And 2/1 O2 Sensor Component Location - 2.7L

G04536280

Courtesy of DAIMLERCHRYSLER CORP.
