Powertrain Diagnostic Procedures - Except Coupe
>>
Charts And Graphs Charts
Charts And Graphs Charts

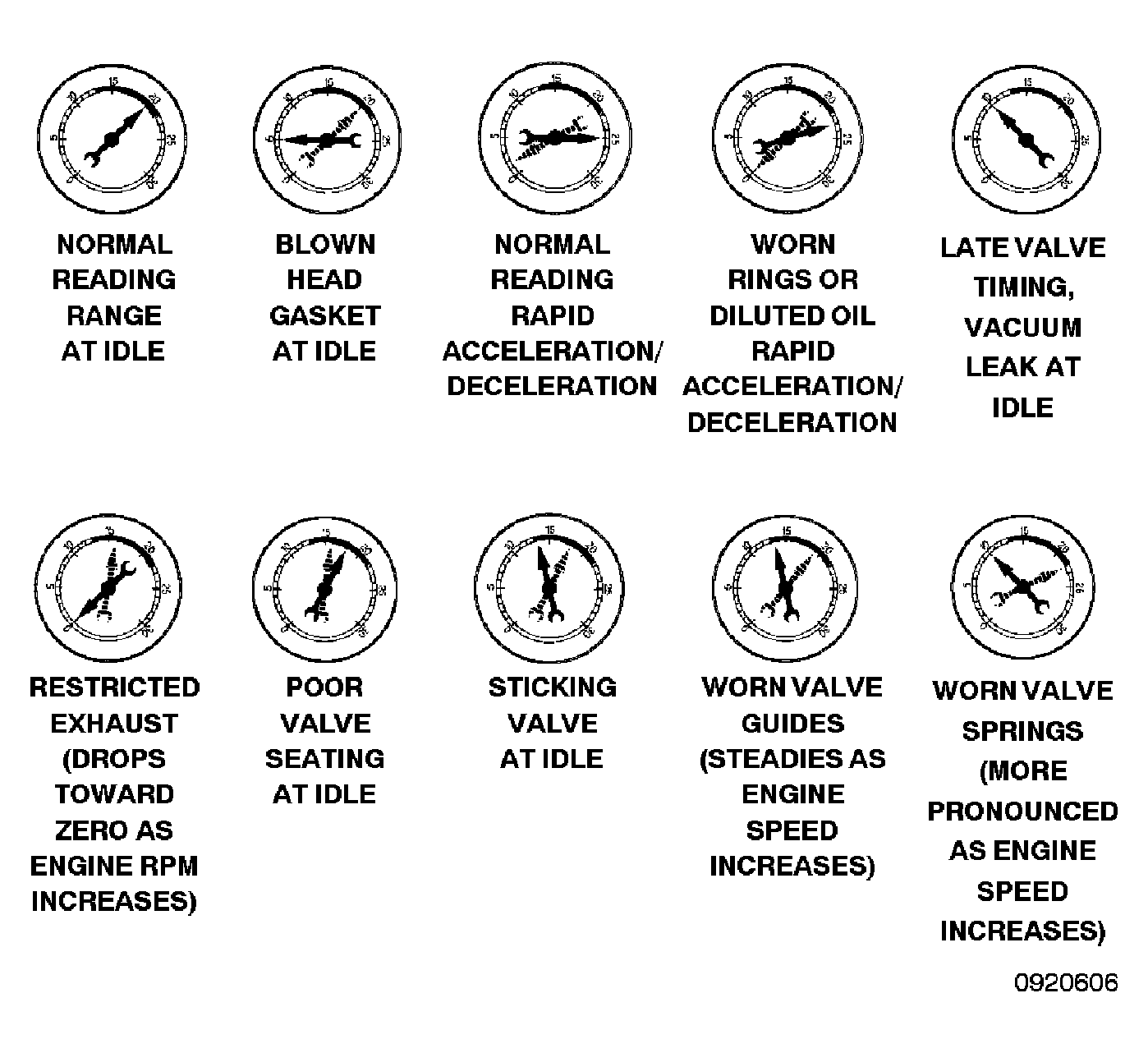

Fig 1: Vacuum Gauge Reading Charts
Courtesy of DAIMLERCHRYSLER CORP.

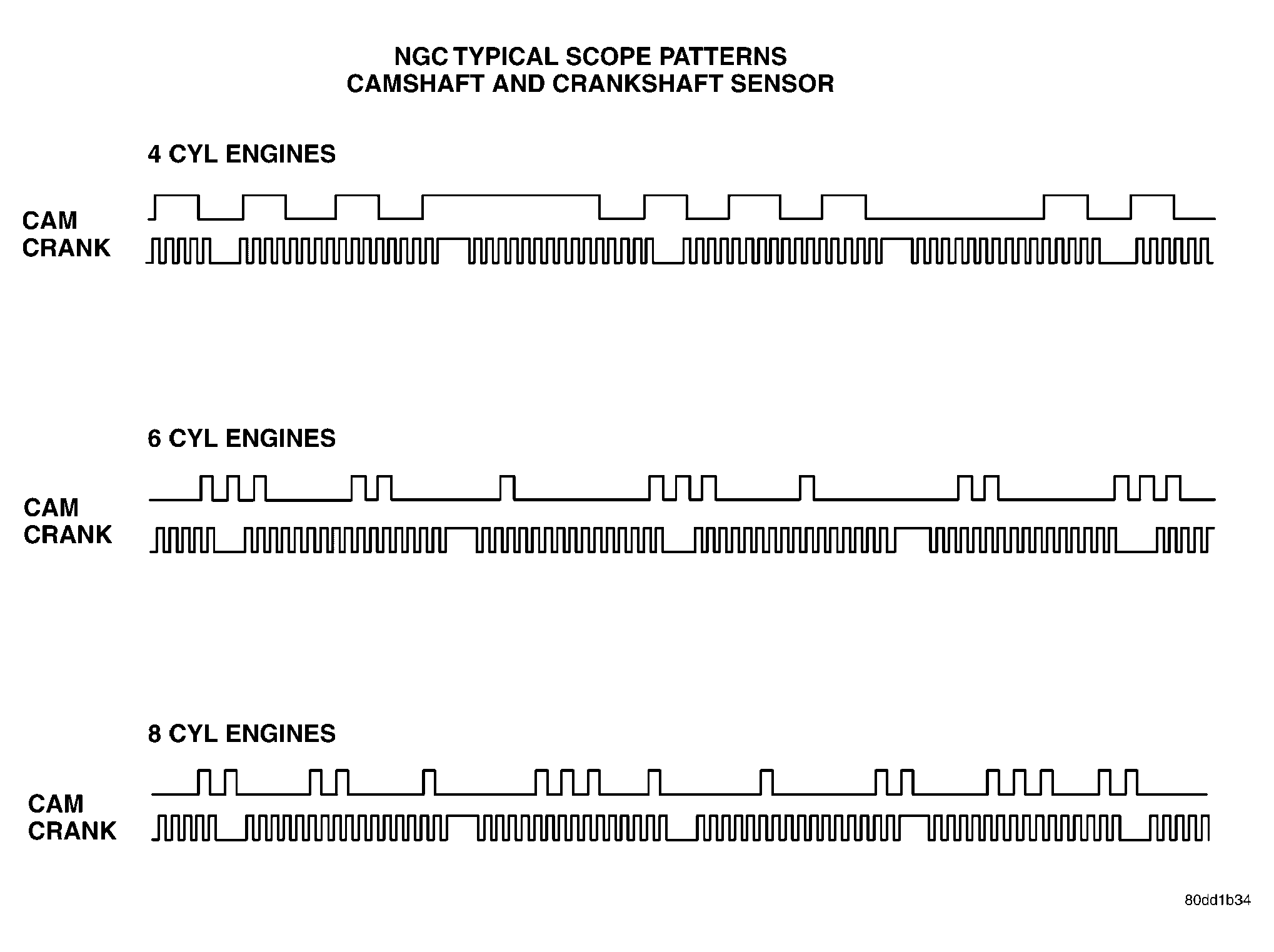

Fig 2: Camshaft And Crankshaft Sensors Pattern Chart
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: EELD Calibration Tool
Courtesy of DAIMLERCHRYSLER CORP.

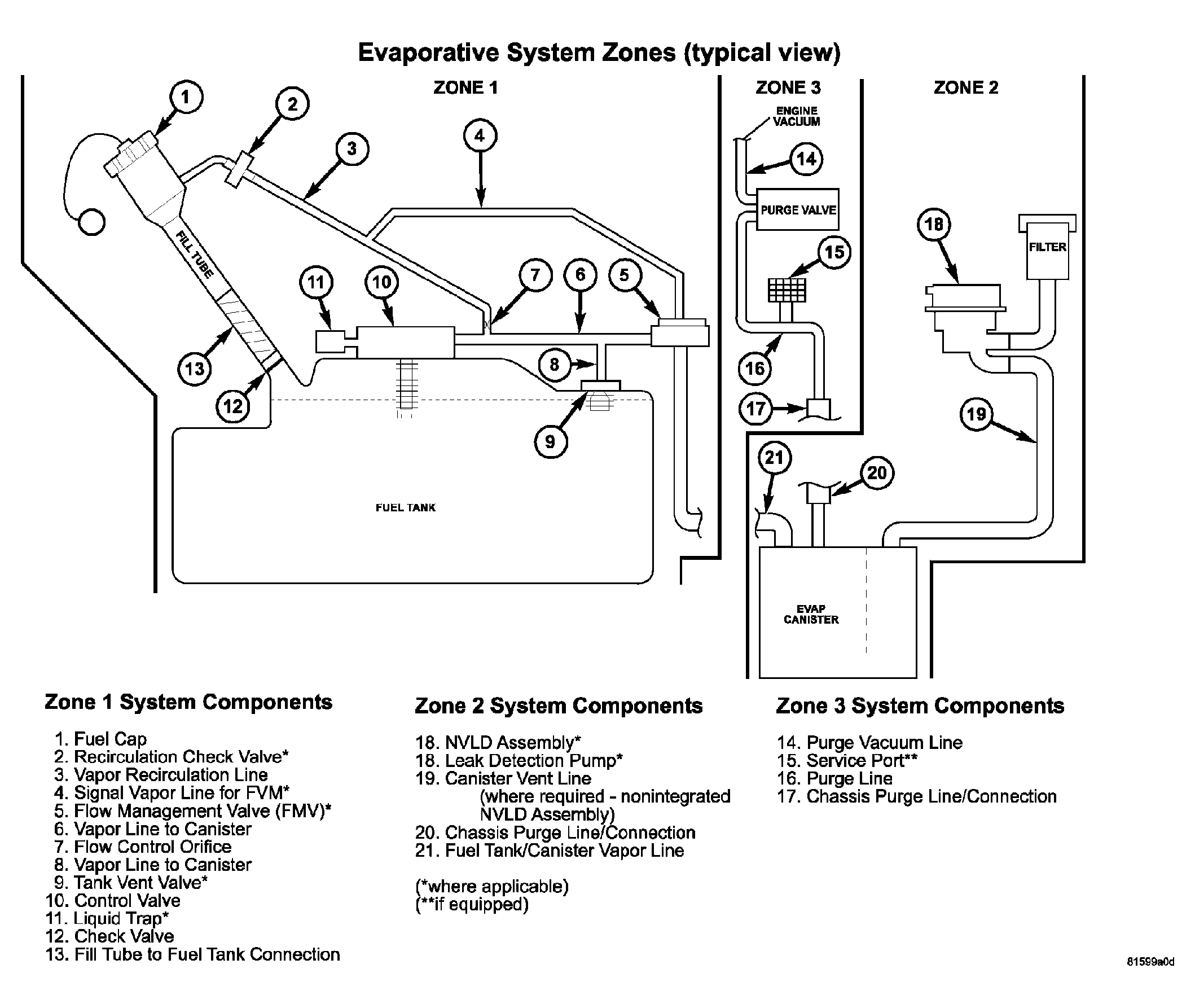

Fig 4: Evaporative System Zones - Line Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
