Powertrain Control Module C4 - Black/Green 38 Way

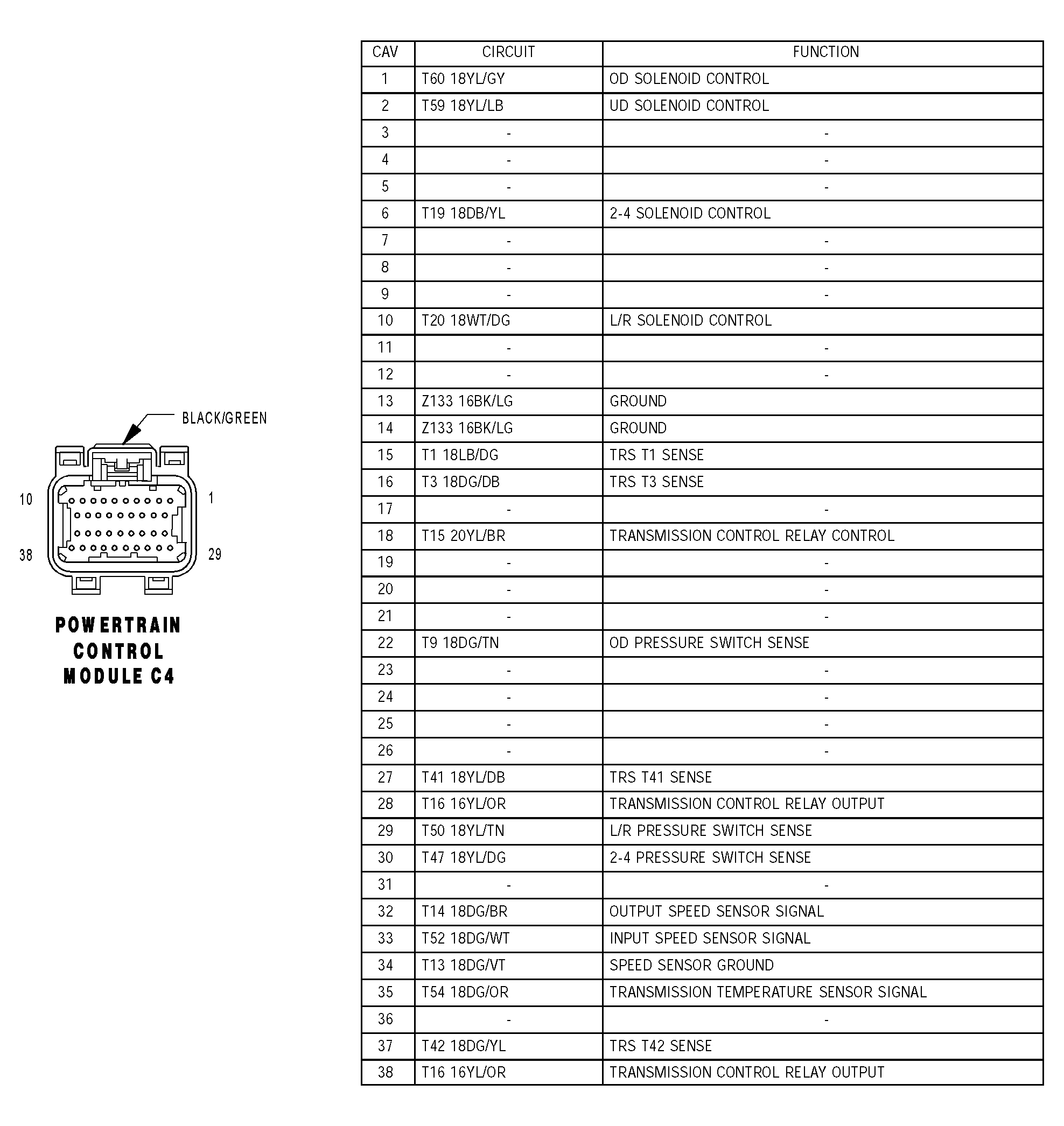

Fig 1: Identifying Powertrain Control Module C4 Connector Pinouts

G04528429

Courtesy of DAIMLERCHRYSLER CORP.
