Integrated Power Module C6 - Gray 12 Way

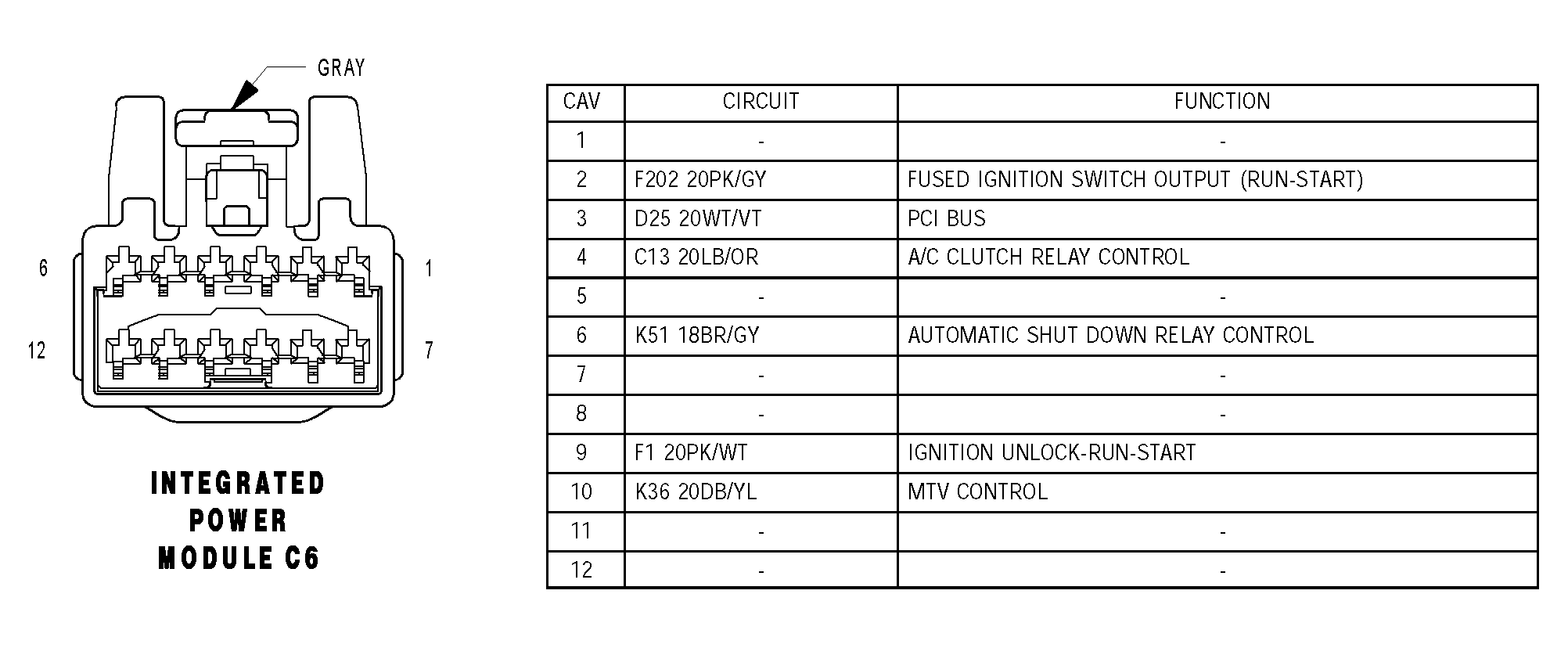

Fig 1: Identifying Integrated Power Module C6 Connector Pinouts

G04528422

Courtesy of DAIMLERCHRYSLER CORP.
