Data Link Connector - Black 16 Way

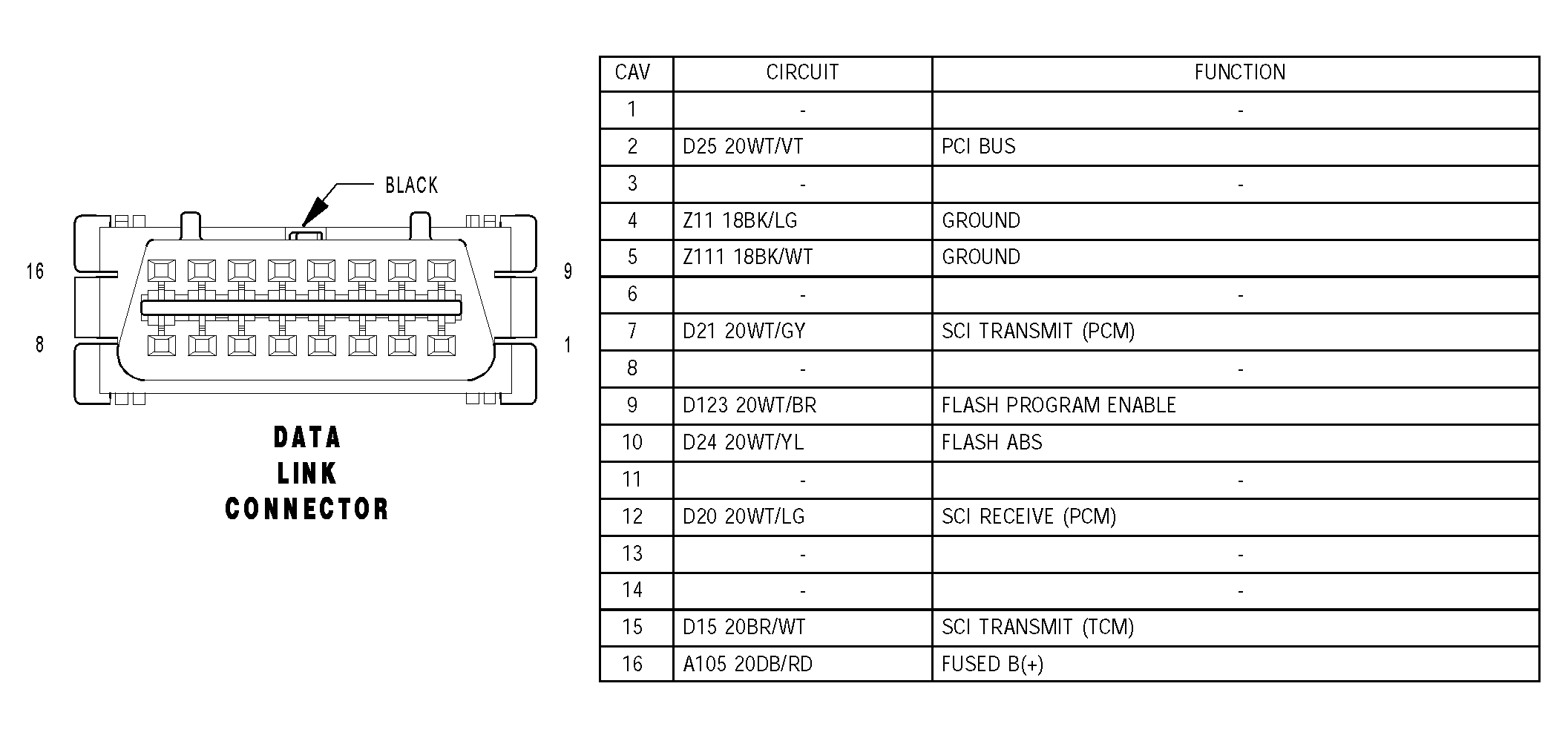

Fig 1: Identifying Data Link Connector Connector Pinouts

G04528097

Courtesy of DAIMLERCHRYSLER CORP.
