Throttle Position Sensor - Gray 3 Way

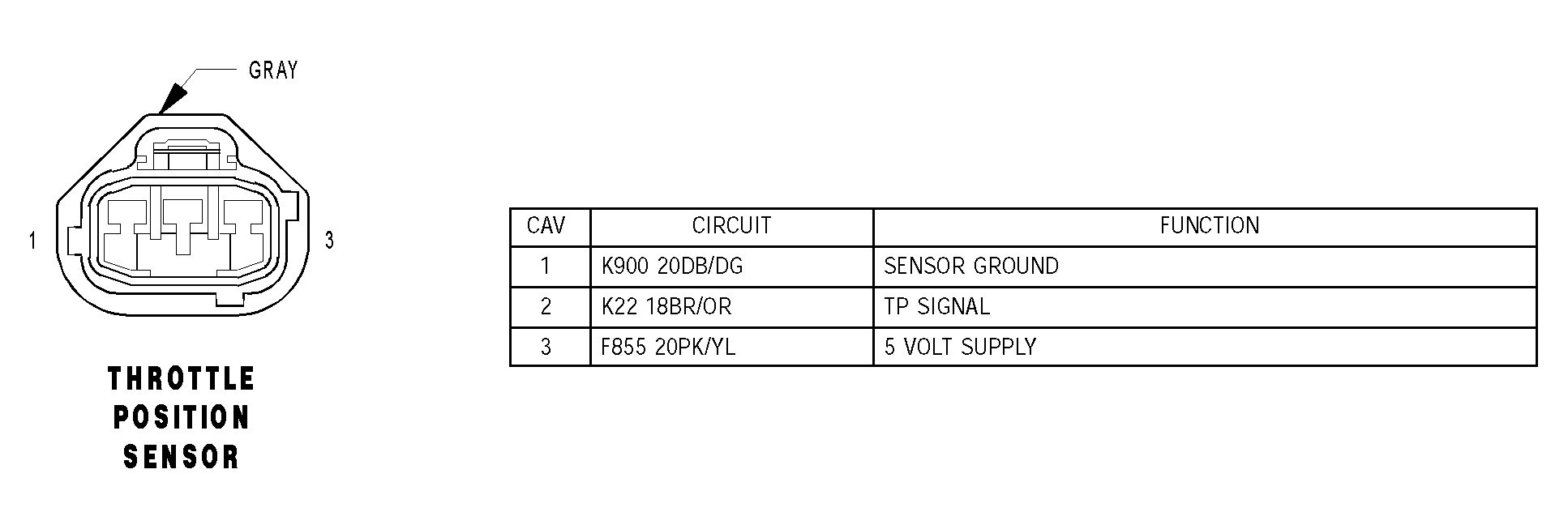

Fig 1: Identifying Throttle Position Sensor Connector Pinouts

G04528133

Courtesy of DAIMLERCHRYSLER CORP.
