Circuit Schematic

WARNING: This page is about a different car, the 2005 Dodge Magnum and 2005 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

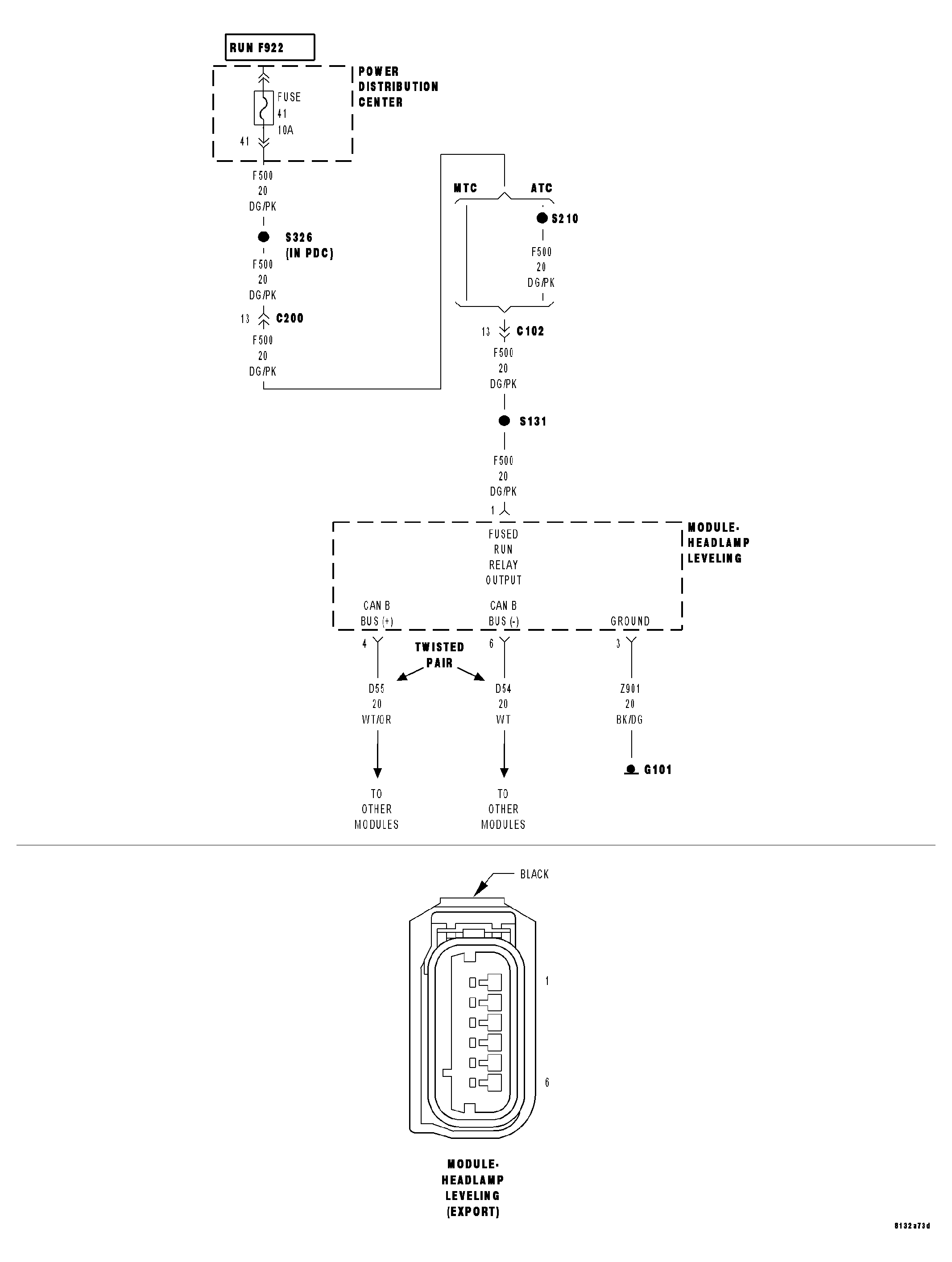

Fig 1: Headlamp Leveling Module Power, Ground & Communication Circuit Schematic
GC0015780Courtesy of DAIMLERCHRYSLER CORP.
