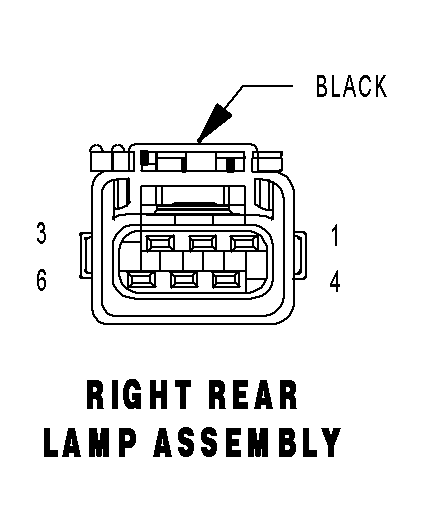

Right Rear Lamp Assembly Connector End View
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, 2005 Chrysler Town & Country, 2004 Dodge Grand Caravan, and 2004 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L62 18WT/BR (EXCEPT EXPORT) | RIGHT REAR TURN SIGNAL DRIVER |
| 1 | Z362 18BK/BR (EXPORT) | GROUND |
| 2 | L62 18WT/BR (EXPORT) | RIGHT REAR TURN SIGNAL DRIVER |
| 3 | L50 18WT/TN (DIESEL) | PRIMARY BRAKE SWITCH SIGNAL |
| 3 | L78 18WT/OR (EXCEPT EXPORT/EXCEPT TRAILER TOW) | FUSED PARK LAMP RELAY OUTPUT (RIGHT) |
| 3 | L50 18WT/TN (GAS EXPORT) | BRAKE LAMP SWITCH OUTPUT |
| 3 | L78 18WT/TN (TRAILER TOW) | FUSED PARK LAMP RELAY OUTPUT (RIGHT) |
| 4 | L1 18WT/LG (EXCEPT TRAILER TOW) | BACK-UP LAMP FEED |
| 4 | L1 18 WT/PK (TRAILER TOW) | BACK-UP LAMP FEED |
| 5 | Z362 18BK/BR (EXCEPT EXPORT/EXCEPT TRAILER TOW) | GROUND |
| 5 | L38 20WT/YL (EXPORT) | REAR FOG LAMP SWITCH OUTPUT |
| 5 | Z362 18BR/OR (TRAILER TOW) | GROUND |
| 6 | L78 18WT/OR (EXPORT) | FUSED PARK LAMP RELAY OUTPUT (RIGHT) |
