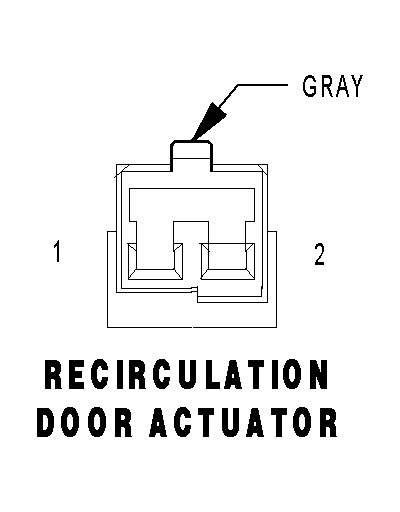

Recirculation Door Actuator Connector End View
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, 2005 Chrysler Town & Country, 2004 Dodge Grand Caravan, and 2004 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
RECIRCULATION DOOR ACTUATOR - GRAY 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | C132 20DB/YL (ATC) | RECIRCULATION DOOR DRIVER (B) |
| 1 | C34 20DB/LB (MTC LHD) | COMMON DOOR DRIVER (B) |
| 1 | C32 20DB/TN (MTC RHD) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C32 20DB/TN (ATC) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C32 20DB/TN (MTC LHD) | RECIRCULATION DOOR DRIVER (A) |
| 2 | C34 20DB/LB (MTC RHD) | COMMON DOOR DRIVER (B) |
