Rear Mode Motor (3 Zone Automatic Temperature Control) Connector End View

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, 2005 Chrysler Town & Country, 2004 Dodge Grand Caravan, and 2004 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.

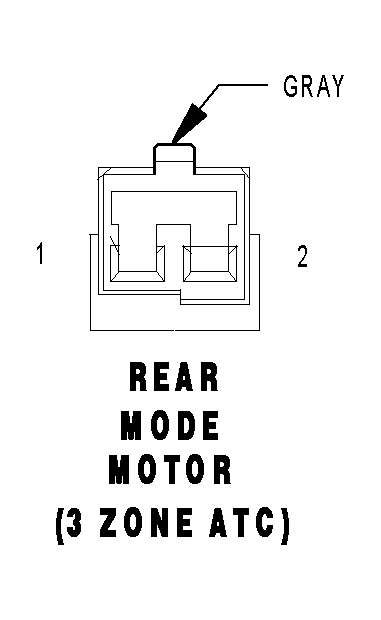

REAR MODE MOTOR (3 ZONE ATC) - GRAY 2 WAY

GCRS580395Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
