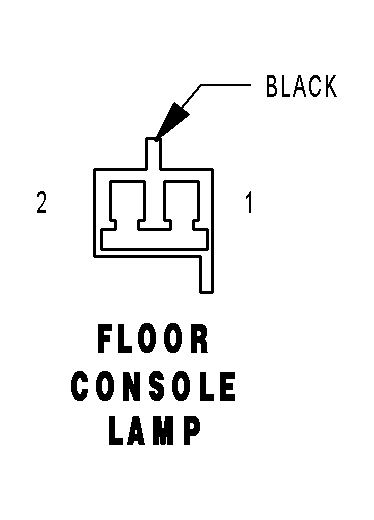

Floor Console Lamp Connector End View
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Dodge Grand Caravan, 2005 Dodge Caravan, 2005 Chrysler Town & Country, 2004 Dodge Grand Caravan, and 2004 Dodge Caravan. However, it is still accessible from the selected car via links, so may be relevant.
FLOOR CONSOLE LAMP - BLACK 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | M27 18OR (FRONT POSITION) | READING LAMPS DRIVER |
| 1 | F307 18OR (REAR POSITION/ACCESSORY RELAY POSITION) | FUSED ACCESSORY RELAY OUTPUT |
| 1 | F307 18OR (REAR POSITION/BATTERY POSITION) | FUSED B(+) |
| 2 | Z746 16BK (FRONT POSITION) | GROUND |
| 2 | Z747 16BK (REAR POSITION) | GROUND |
