Vehicle Identification Number: Description

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

The Vehicle Identification Number (VIN) can be viewed through the windshield at the upper left corner of the instrument panel next to the A-pillar. See Fig 1 or Fig 2. The VIN consists of 17 characters in a combination of letters and numbers that provide specific information about the vehicle. Refer to the VIN DECODING INFORMATION  Table to interpret VIN code.

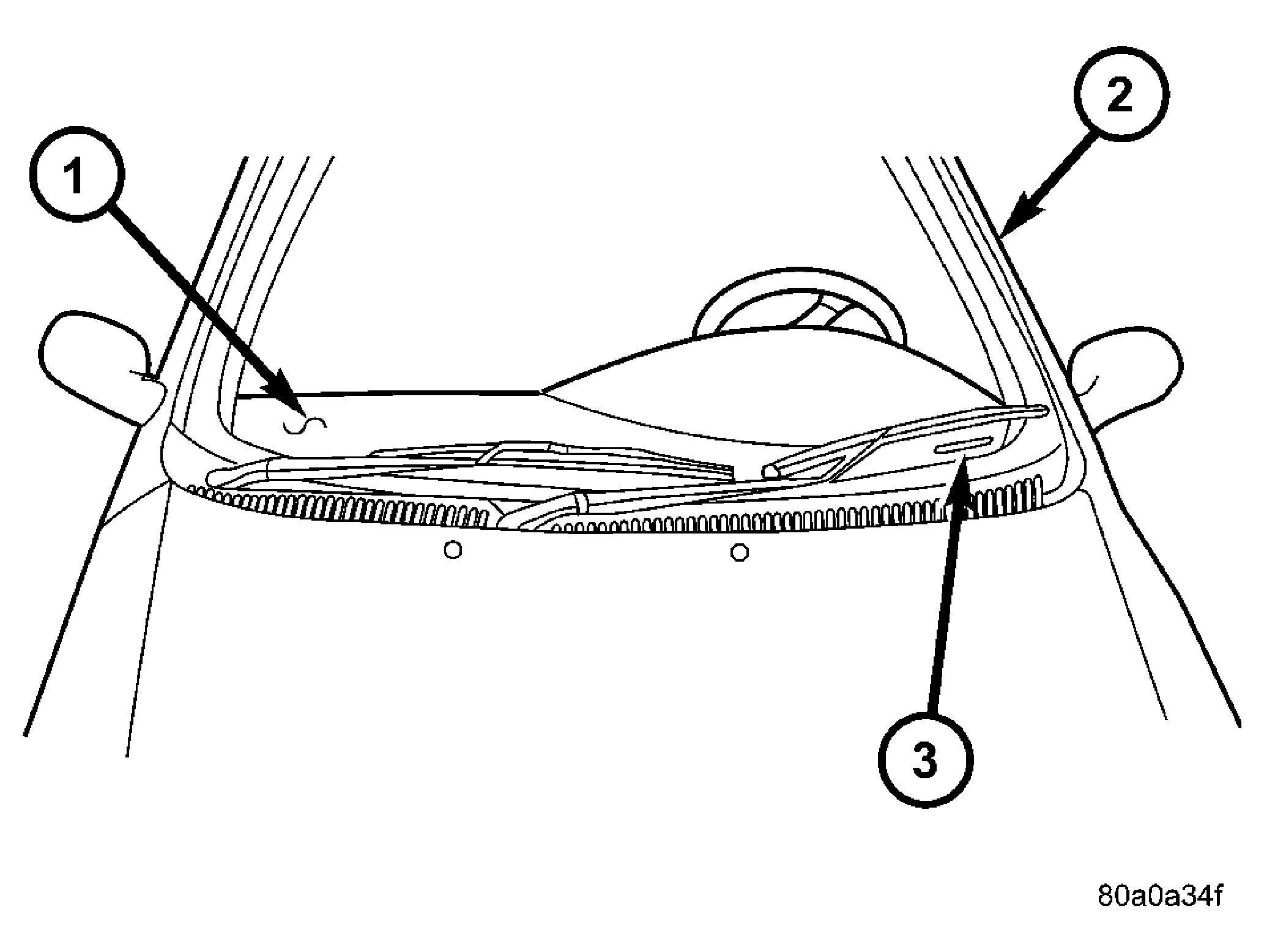

Fig 1: VIN Location - LHD
GC0021363Courtesy of DAIMLERCHRYSLER CORP.
1 - INSTRUMENT PANEL
2 - A-PILLAR
3 - VIN LOCATION
Fig 2: VIN Location - RHD
GC0021364Courtesy of DAIMLERCHRYSLER CORP.
1 - INSTRUMENT PANEL
2 - A-PILLAR
3 - VIN LOCATION
