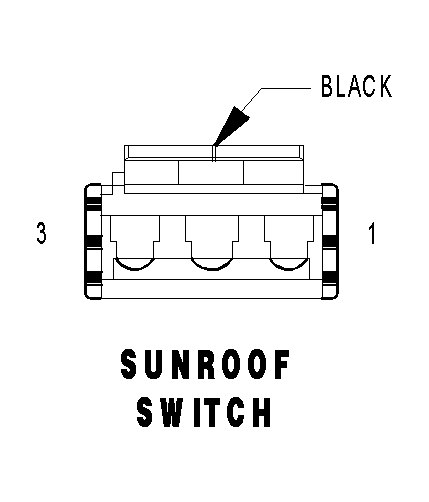

Sunroof Switch Connector End View

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

SUNROOF SWITCH - BLACK 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F10 18YL/RD	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2	Q43 18WT/RD	SUNROOF VENT
3	Z3 18BK/VT	GROUND
