Power Steering Pressure Switch Connector End View

WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

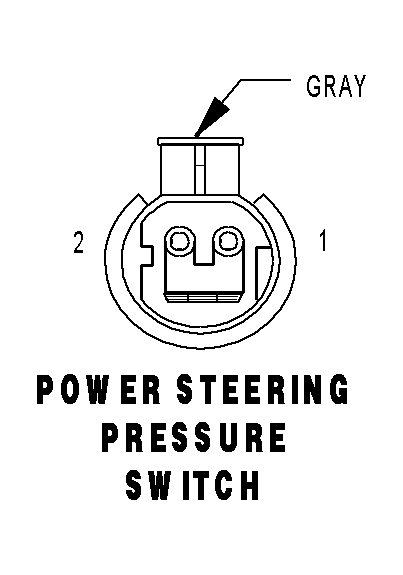

POWER STEERING PRESSURE SWITCH - GRAY 2 WAY

GCPL580168Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K10 20DB/OR PSP SWITCH SIGNAL
2 Z12 20BK/TN GROUND
