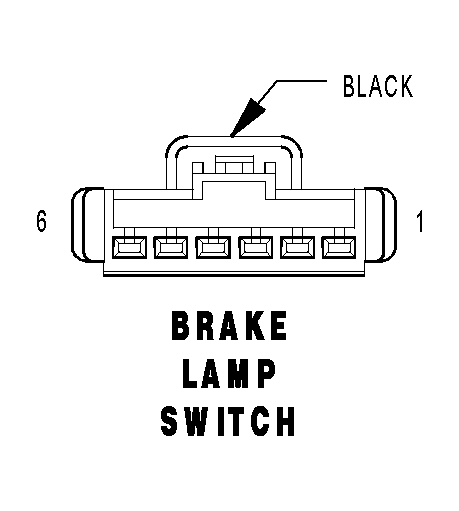

Brake Lamp Switch Connector End View
WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.
BRAKE LAMP SWITCH - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F32 18PK/DB | FUSED B(+) |
| 2 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 2 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 3 | V30 20DB/RD (2.0L) | SPEED CONTROL BRAKE LAMP SWITCH OUTPUT |
| 4 | V32 20YL/RD (2.0L) | S/C SUPPLY |
| 5 | Z1 20BK (2.0L) | GROUND |
| 5 | Z1 18BK (2.4L TURBO) | GROUND |
| 6 | K29 20WT/PK | BRAKE SWITCH SIGNAL |
| 6 | K29 20WT/PK (2.0L) | BRAKE SWITCH SIGNAL |
